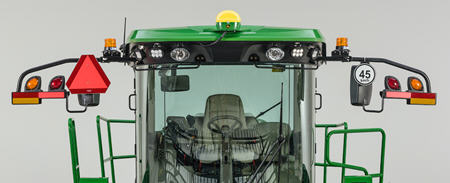

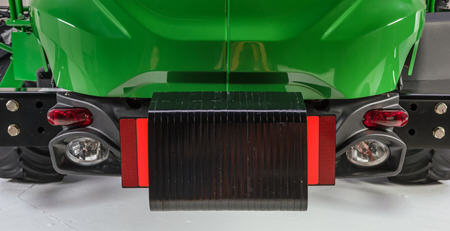

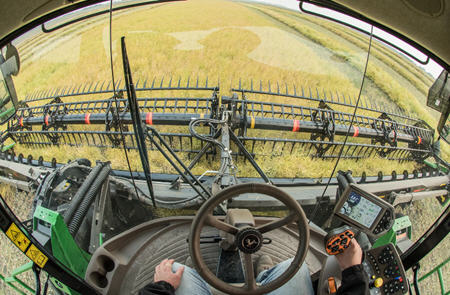

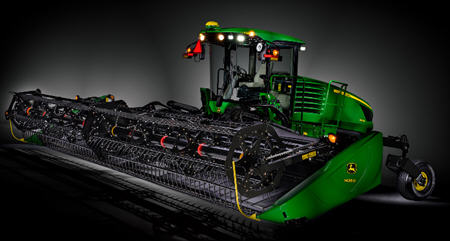

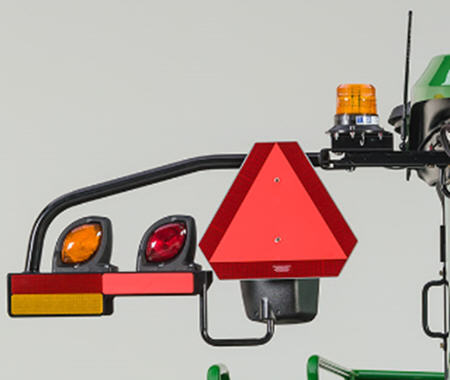

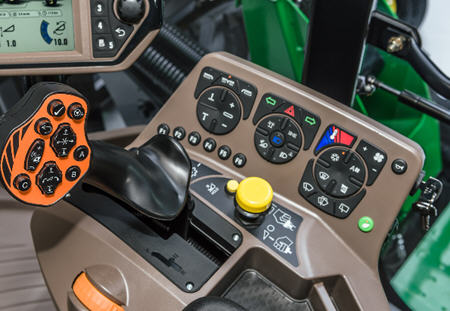

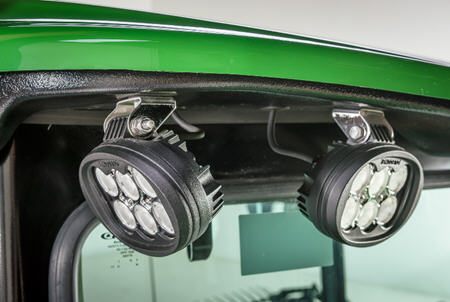

John Deere W170

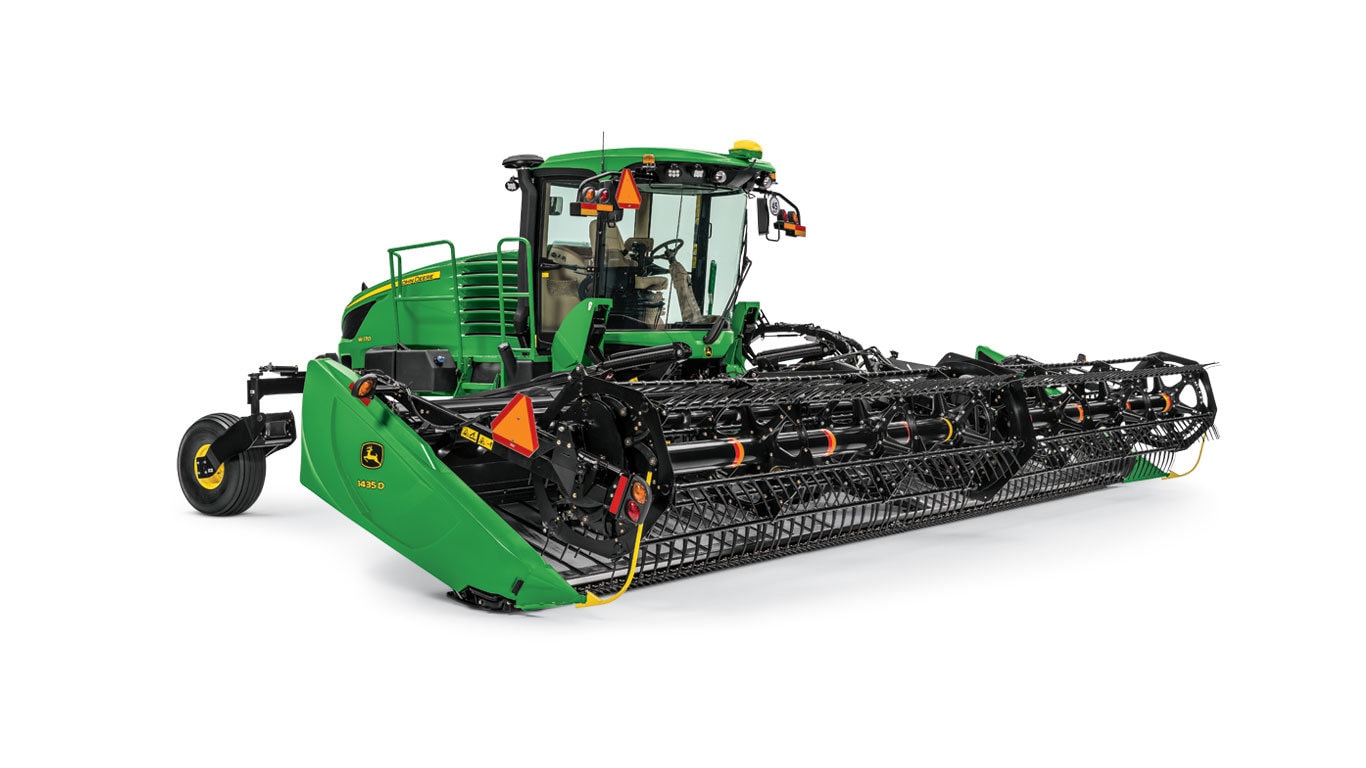

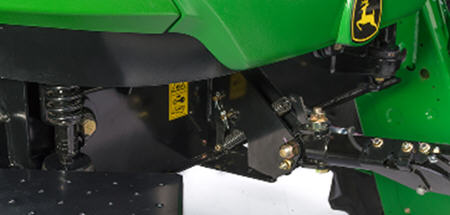

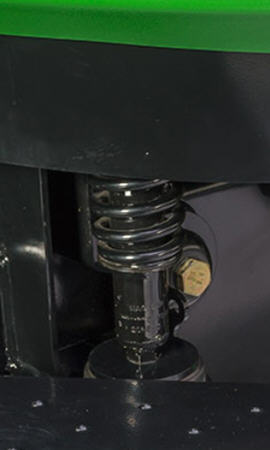

A four-point independent suspension delivers a smoother, more comfortable ride. The W170 has four coil-spring shock absorbers working in conjunction with fore-aft and side-to-side stabilizers to minimize cab roll. The shocks are placed at each corner of the cab so the entire cab can go up or down from the resting position. This suspension makes the W170 one of the most comfortable cabs in the industry.

Transport wider draper platforms with ease and control using the ballast box and the 1400D with an integrated transport system.

Ballast box with seven-pin connector

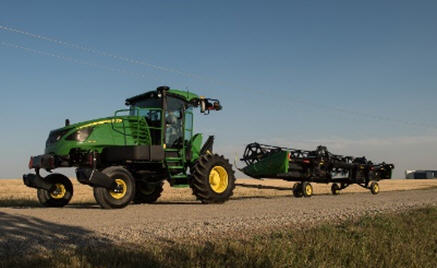

Transporting the 1435D

It also enables narrow transport when used with a 1400D Draper Platform with the integrated slow-speed transport system. The ballast box shifts weight onto the drive tires for traction and control when in transport. It also has a hitch for attaching and towing the 1400D Platform. It is required to have the electrical wiring harness and hitch pin kit to provide a seven-pin connector on the ballast box for lighting. This provides the W170 and 1400D Platform with visibility for safe transport.

W170 Self-Propelled Windrowers feature an AutoTrac Controller, delivering improved line acquisition and online accuracy to increase performance and lower cost of operation. The fully integrated AutoTrac Controller uses hydraulics to steer the machine, providing more precise control than the AutoTrac Universal solution.

Can be ordered from the factory

The W170 comes from the factory GreenStar© system ready. Select the AutoTrac kit option when ordering the machine to make the W170 AutoTrac ready. The AutoTrac kit includes a hydraulic steering kit, AutoTrac Controller, and universal global positioning system (GPS) receiver mounting kit. An optional GreenStar 3  2630 Display kit and StarFire© 6000 Receiver can also be ordered from the factory.

AutoTrac kit

The AutoTrac kit (dealer installed) includes:

• Hydraulic-steering AutoTrac kit
• AutoTrac Controller kit
• Receiver mounting kit

NOTE: Estimated dealer install time for the AutoTrac kit is approximately 8 hours. Installation includes mounting and connecting the hydraulic and steering linkage components, installing the AutoTrac Controller, and installing the universal receiver mounting kit.

When ordered from the factory, the hydraulic kit will be shipped with the machine. The AutoTrac Controller kit and receiver mounting kit (and Greenstar 3 2630 Display and StarFire 6000 Receiver, if ordered) will ship from a secondary location separate from the machine.

Display (cornerpost mount)

The Greenstar 3 2630 Display includes:

• Greenstar 3 2630 Display
• Display harness
• Mounting bracket

Receiver

• StarFire 6000 Receiver ™ SF1 with deluxe shroud
• StarFire 6000 Receiver ™ SF2 ready with deluxe shroud

Compatibility and availability

AutoTrac Controller on W170 Self-Propelled Windrowers is compatible with the Greenstar 3 2630 Display and Greenstar 2 1800 Display. If not purchased from the factory at time of machine order, refer to the Precision Ag Technologies Sales Manual and Price Page for ordering information.

Attaching and detaching platforms is easy, allowing fast and narrow draper transport and the ability to quickly change from hay to grain harvest. This allows those with diverse operations to use the machine for more hours annually, spreading out their costs.

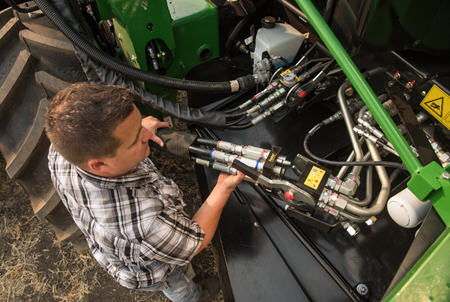

A hose management system is conveniently located in one spot, housing two hydraulic and one electrical connection.

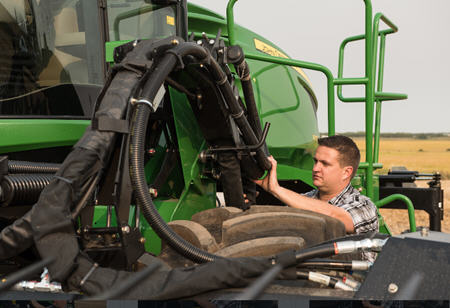

Swing arm with connections

Connecting all hydraulic and electrical connections

Hydraulic and electrical connections are compatible with the 400D Series draper heads, and 100A Series auger heads.

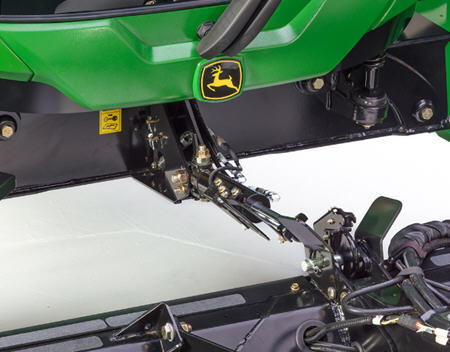

Center link

An optional self-alignment kit comes with the hydraulic center link, making attaching and detaching a breeze for those who move fields frequently or want the ease of attaching. This kit gives the capability to move the center link up and down with a cylinder under the cab controlled by the reel fore-aft buttons on the multifunction control lever.

Pin on lower lift arms for quick-attach

Lower lift arms with draper boot attached

Quick-attach lower lift arms

Quick-attach 1100A Auger Platform

Quick-attach 1400D Draper platform

The pin on the lower lift arms allows for easy changeover from draper to auger platforms and also for changing from wide draper in-field operation to narrow transport.

Springs and float-fine adjust

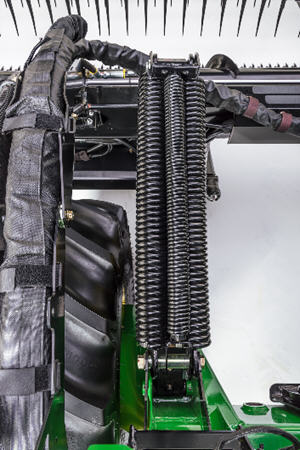

Springs are easily adjustable. Simply raise the platform to relieve spring pressure and turn the bolt to adjust the leverage on the springs. This allows changing platforms quickly and easily.

The float-fine adjust is in base equipment for the W170. It uses a small hydraulic cylinder to adjust spring length and force independently on each side. This also allows changing the platform float for varying field conditions on the go and has three memory positions from which to select. The float-fine adjust also allows rebalancing the platform when using the deck-shift feature by using the same controls on the armrest.
