Feature Overview

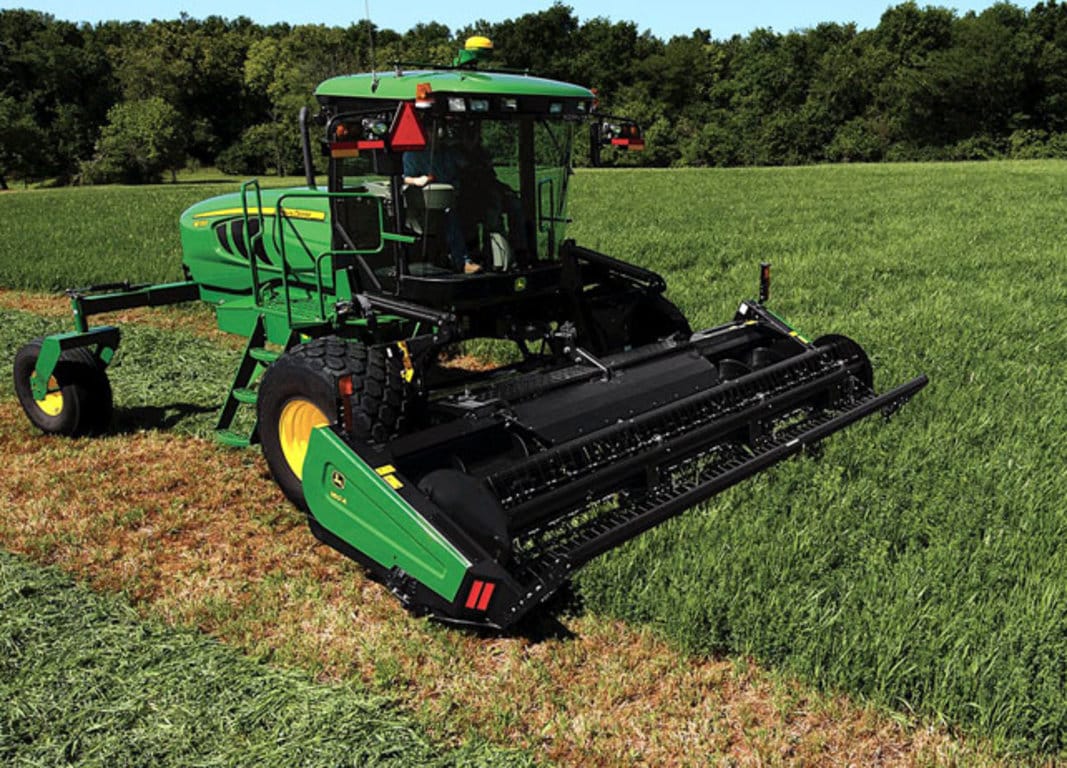

John Deere W155
  • Cab suspension provides smooth ride for maximum productivity in rough fields
  • Visibility and powerful exterior lighting make harvest easier during day and night
  • Optional reverser clears plugs effortlessly for higher productivity during tough harvest conditions
  • Quick-attach platforms make transport and storage a breeze
Engine - Model Power Tech™ PSS 4.5 L John Deere Final Tier 4
Ground drive - Type Hydrostatic, three-speed electric-shift motors
Weight - Total Casters spun in: 6749 kg / 14,880 lb / Casters spun out: 6749 kg / Axle weights with 160A Auger Platform / Casters spun in: 8199 kg / 18,076 lb / Casters spun out: 8199 kg
Fuel - Capacity 367 L / 97 U.S. gal.
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere W155
  • Cab suspension provides smooth ride for maximum productivity in rough fields
  • Visibility and powerful exterior lighting make harvest easier during day and night
  • Optional reverser clears plugs effortlessly for higher productivity during tough harvest conditions
  • Quick-attach platforms make transport and storage a breeze
Engine - Model Power Tech™ PSS 4.5 L John Deere Final Tier 4
Ground drive - Type Hydrostatic, three-speed electric-shift motors
Weight - Total Casters spun in: 6749 kg / 14,880 lb / Casters spun out: 6749 kg / Axle weights with 160A Auger Platform / Casters spun in: 8199 kg / 18,076 lb / Casters spun out: 8199 kg
Fuel - Capacity 367 L / 97 U.S. gal.
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Features

Visibility and powerful exterior lighting make harvest easier during day and night

Excellent visibility to see the platform and crop during field operation
Draper visibility Draper visibility
Visibility to the entire platform Visibility to the entire platform

Large, wide-front glass and cab positioned forward and above the platform give excellent visibility to the cutterbar and incoming crop across the widest platforms. This allows ease of operation and maximum productivity even in the toughest cutting conditions.

Powerful exterior lighting makes nighttime operation almost as easy as in the daytime

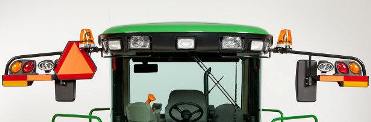

Lighting with beacon and high-intensity discharge (HID) options Lighting with beacon and high-intensity discharge (HID) options
Lighting and markings Lighting and markings
Rear lighting Rear lighting
Side/rear adjustable lighting Side/rear adjustable lighting

Halogen lighting is used to give the operator excellent visibility when operating at nighttime or in low-visibility conditions.

  • Automotive-type lamps use replaceable bulbs for easy service.
  • Seven headlights are mounted on the front of the cab to illuminate the cutting area in front of the platform. This gives excellent visibility to the crop and obstacles in the fields.
  • Two rear work lights are mounted on the rear of the machine.
  • Two adjustable side or rear-facing work lights are mounted on the rear of the cab to illuminate the area to the sides and rear of the machine. This allows seeing stubble and obstacles in the field. The left-hand side light has a delay egress feature.
  • When transporting in road range, the flashing hazard lights (and beacon lights if equipped) come on automatically.

An optional HID lighting package (two mirror-mounted HID lights) is available to provide additional lighting. Optional warning beacon lights are available, providing additional visibility during transport.


Standard cab suspension Standard cab suspension
Coil-over-shock suspension Coil-over-shock suspension

Four-point independent suspension delivers a smoother, more comfortable ride. The W155 has four coil-spring shock absorbers working in conjunction with fore-aft and side-to-side stabilizers to minimize cab roll. The shocks are placed at each corner of the cab so the entire cab can go up or down from the resting position. This suspension makes the W155 one of the most comfortable cabs in the industry.


Platform reverser controls Platform reverser controls

An optional reverser is available on the W155 only. It is easily activated from the operator's station to clear the platform of plugs that may occur.



On the 400D Platforms, the reverser slowly reverses the knife drive and optional hay conditioner if equipped to clear plugs. The reverser is highly recommended when using the optional hay conditioner with the 400D Draper Platform.



On the 100A Auger Platform the reverser slowly reverses the conditioning rolls, auger, and reel. This makes a difficult job easier, so the operator can be more productive.



Operators can run the machines nearer to their maximum capacity and it will take less time to unplug, adding to the machine productivity.



Reverser valve block Reverser valve block
#

The reverser consists of a valve block and valves shown in photo above. It is the gold-colored valve block to the right of the photo. It is shown plumbed for a 100A Auger Platform.


#

W155 Self-Propelled Windrowers feature an AutoTrac Controller, delivering improved line acquisition and online accuracy to increase performance and lower cost of operation. The fully integrated AutoTrac Controller uses hydraulics to steer the machine, providing more precise control than the AutoTrac Universal solution.



Can be ordered from factory



The W155 comes from the factory GreenStar© system ready. Select the AutoTrac kit option when ordering the machine to make the W155 AutoTrac ready. The AutoTrac kit includes a hydraulic steering kit, AutoTrac Controller, and universal GPS receiver mounting kit. An optional GreenStar 3 2630 Display kit and StarFire© 3000 Receiver can also be ordered from factory.



AutoTrac kit

AutoTrac kit (dealer installed) includes:

  • Hydraulic steering AutoTrac kit
  • AutoTrac controller kit
  • Receiver mounting kit

NOTE: Estimated dealer install time for the AutoTrac kit is approximately 8 hours. Installation includes mounting and connecting the hydraulic and steering linkage components, installing the AutoTrac controller, and installing the universal receiver mounting kit.



When ordered from the factory, the hydraulic kit will be shipped with the machine. The AutoTrac Controller kit and receiver mounting kit (and GreenStar 3 2630 and SF3000 Receiver if ordered) will ship from a secondary location separate from the machine.



Display (cornerpost mount)

GreenStar 3 2630 Display includes:

  • GreenStar 3 2630 Display
  • Display harness
  • Mounting bracket

Receiver

  • StarFire 3000 Receiver - SF1 with deluxe shroud
  • StarFire 3000 Receiver - SF2 ready with deluxe shroud

Compatibility and availability



AutoTrac Controller on W150 and W155 Self-Propelled Windrowers is compatible with the GreenStar 2630 Display and 1800. If not purchased from the factory at time of machine order, refer to the AMS Sales Manual and Price Page for ordering information.


Narrow transporting a 435D Narrow transporting a 435D
#

Transport wide draper platforms with ease and control using the ballast box and 400D with an integrated transport system.

Ballast box with seven-pin connector Ballast box with seven-pin connector
#

The optional ballast box enables the power unit to safely transport without a platform.



It also enables narrow transport when used with a 400D Platform with the integrated slow-speed transport system. The ballast box shifts weight onto the drive tires for traction and control when in transport. It also has a hitch for attaching and towing the 400D Platform. It is required to have the electrical wiring harness and hitch pin kit to provide a seven pin connector on the ballast box for lighting. This provides the W155 and 400D Platform with visibility for safe transport.


Attaching and detaching platforms is easy, allowing fast and narrow draper transport and the ability to quickly change from hay to grain harvest. This allows those with diverse operations to use the machine for more hours annually, spreading out their costs.



Single-point multi-coupler 400D Single-point multi-coupler 400D
Multi-coupler storage Multi-coupler storage

A single-point multi-coupler on the right-hand side of the machine stores easily out of the way for hay use and is conveniently connected to the platform using the multi-coupler.

Hydraulic and electric connections on left side of machine
Storage position for hoses and wiring Storage position for hoses and wiring
Hydraulic and electrical connections to 400D Hydraulic and electrical connections to 400D

The storage position keeps hydraulic and electric connections away from moving components and secure for transport.



Uniquely sized locking flat-face quick-attach couplers provide easy attachment and make connecting virtually fool proof.



Self-latching hydraulic center-link option Self-latching hydraulic center-link option
Center-link vertical alignment Center-link vertical alignment

A self-latching center-link comes with the optional hydraulic center-link, making connecting the platform easy.



The other optional kit for center-link vertical alignment makes attaching and detaching a breeze for those who move fields frequently or want the ease of attaching. This kit gives the capability to move the center-link up and down with a cylinder under the cab controlled by the reel fore-aft buttons on the multi-function control lever.

Pin on lower lift arms for quick-attach
Lower lift arms with draper boot attached Lower lift arms with draper boot attached
Lower lift arms quick-attach Lower lift arms quick-attach
Quick-attach 100A Auger Platform Quick-attach 100A Auger Platform
Quick-attach 400D Draper Platform Quick-attach 400D Draper Platform

The pin on lower-lift arms allows easy change over from draper to auger platforms and also changing from wide draper in-field operation to narrow transport.



Springs and float-fine adjust Springs and float-fine adjust
#

Springs are easily adjustable. Simply raise the platform to relieve spring pressure and turn the bolt to adjust the leverage on the springs. This allows changing platforms quickly and easily.



The float-fine adjust is in base equipment for the W155. It uses a small hydraulic cylinder to adjust spring length and force independently on each side. This also allows changing the platform float for varying field conditions on the go and has three memory positions from which to select. The float-fine adjust also allows rebalancing the platform when using the deck-shift feature by using the same controls on the armrest.



Storing the 400D Storing the 400D

Storing 400D Platform with a W155 is easy with great visibility and control to push the platform in through narrow doorways for off-season storage.


Specs
Engine
Make John Deere
Model PowerTech PSS 4.5 L John Deere Final Tier 4
Horsepower 116 kW
155 hp
No. of cylinders Four
Exhaust direction Vertical
Engine displacement 4.5 L
275 cu in.
Engine speeds Variable idle
Manual variable throttle
Hydraulic platform drive
Number of pumps (Rotary/Auger) Auger: one
Number of motors (Rotary/Auger) Auger: one
Final drives
Type Planetary
Electrical system
Alternator 130 amp
Battery Two batteries - 700 CCA
Tires
Drive wheel standard 18.4 x 26 Button
Caster wheels 10 x 16 or16.5L - 16.1 forked casters
Caster wheels option 7.5 - 16 SL or 10 x 16 formed or forked casters
Cab
Seat Adjustable air suspension seat with seat belt
Steering column Tilt steering
Instructional seat Training seat with seat belt
Windshield wiper Single-blade windshield wiper
Air conditioner Heater and air conditioner
Lights
Front Seven halogen lights
Side Two halogen lights
Back Two halogen lights
HID Optional
Weight
Without platform, full fuel Axle weights provided without platform - recommended transport mode
Front axle Casters spun in: 4545 kg
10,019 lb
Casters spun out: 5003 kg
11,030 lb
Axle weights with 160A Auger Platform
Casters spun in: 6297 kg
13,883 lb
Casters spun out: 6688 kg
14,745 lb
Rear axle Casters spun in: 2205 kg
4861 lb
Casters spun out: 1746 kg
3850 lb
Axle weights with 160A Auger Platform
Casters spun in: 1902 kg
4193 lb
Casters spun out: 1511 kg
3331 lb
Total Casters spun in: 6749 kg
14,880 lb
Casters spun out: 6749 kg
Axle weights with 160A Auger Platform
Casters spun in: 8199 kg
18,076 lb
Casters spun out: 8199 kg
Key Specs
Engine - Model Power Tech™ PSS 4.5 L John Deere Final Tier 4
Ground drive - Type Hydrostatic, three-speed electric-shift motors
Weight - Total Casters spun in: 6749 kg
14,880 lb
Casters spun out: 6749 kg
Axle weights with 160A Auger Platform
Casters spun in: 8199 kg
18,076 lb
Casters spun out: 8199 kg
Engine
Bearings
Hydraulic platform drive
Motor displacemen
Key Specs
Fuel - Capacity 367 L
97 U.S. gal.
Engine
Cooling system 24 L
6.3 U.S. gal.
Tires
Drive wheel option 18.4 x 26 bar or tur, 23.1 x 26 turf or 600/65 R28 radial bar
Accessories and Attachments
Frame and Chassis

The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


Lighting

The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


Miscellaneous

The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


The W110 and W150 feature multiple attachments to improve the machine productivity and operator convenience.


Jensen AM/FM/WB Heavy Duty Stereo - SWJHD1120


Jensen AM/FM/WB/CD/USB Satellite & iPod Ready Stereo - SWJHD3620


Stereo with AM/FM, Weatherband, SIRIUS Satellite and iPod Ready - SWJHD1620


*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
