John Deere R160

Easy-to-attach 3-point hitch

The R160 and R200 Mowers attach to tractors with a Category 1 and 2, 3-point hitch. The R160 and R200 are not quick-hitch compatible.

The R160 and R200 models rely on the parking stand to hold up 3-point hitch arms to ensure easy hook up to the tractor.

Adjustable lower hitch pins

Lower hitch pins can be adjusted left or right to match the mower offset for tractors with wider tire spacing. The R160 and R200 models have an offset range of 172 mm (7 in.).

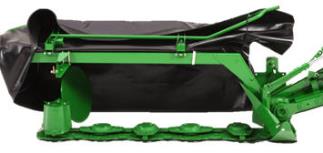

Rotary disc cutterbar

A multi-V-belt drive system transfers power from the gearbox to each rotary disc.

Power is transmitted to the rotary discs through fully enclosed gears running in oil for a quiet, smooth, reliable operation.

All models have a spring-loaded belt tensioner for easier belt adjustment. The belt tension automatically compensates for initial belt stretch, increasing belt life.

High-speed rotary discs

Rotating at 2986 rpm, the high-speed discs cut in the toughest conditions.

The low-profile cutterbar allows a close cut while maintaining a level cutterbar. The cutting height is controlled by adjusting the tilt of the cutterbar.

Each disc has two free-swinging knives:

• Easy to remove and replace
• Two cutting edges, doubling the use life

Removable quill

The cutterbar is protected from severe impact should an object be struck.

• Disc drive-shaft shears
• Reduces chance of internal damage to cutterbar
• Improves cutterbar reliability

Disc quills are easily removed from the top of the cutterbar for improved serviceability.

Each disc has two free-swinging knives:

• Easy to remove and replace
• Two cutting edges, doubling the use life
• Swings away to reduce possible damage if a solid object is struck
