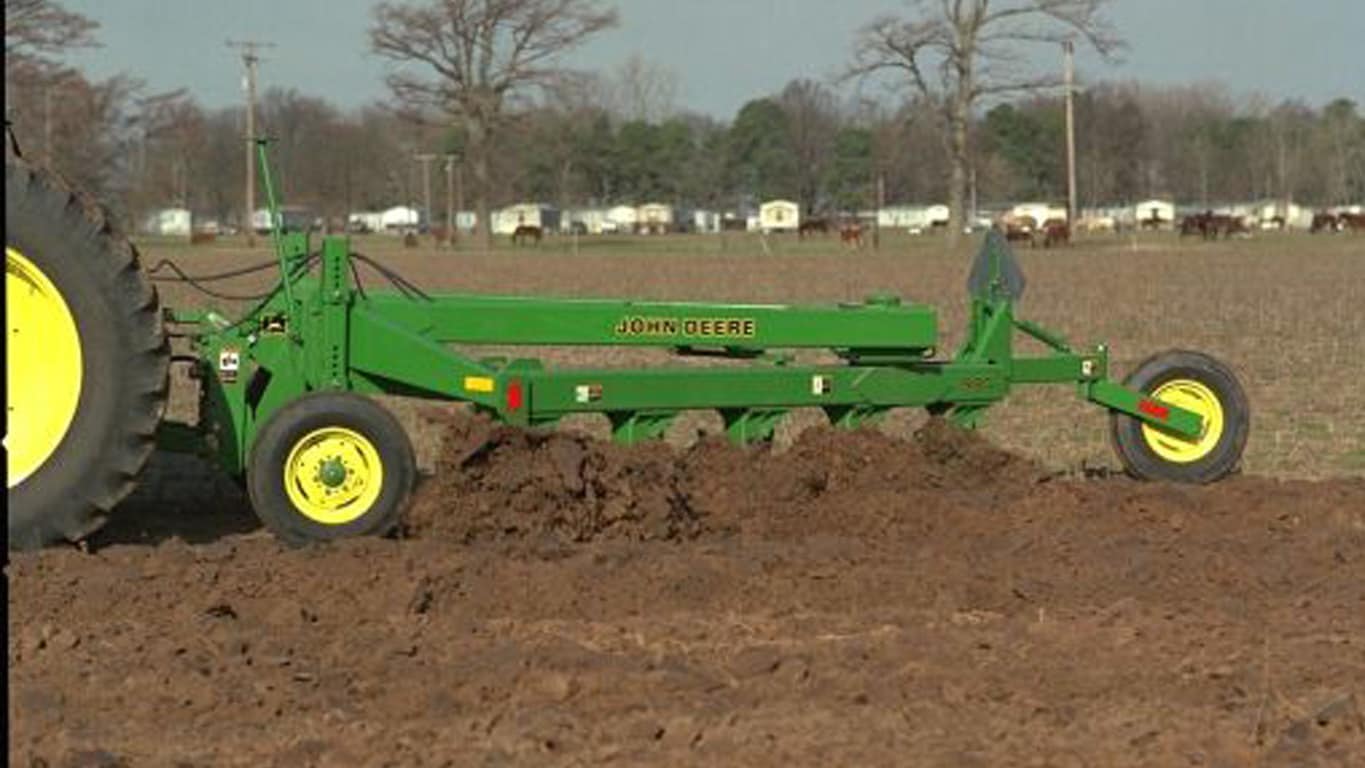

V-style mainframe distributes weight for good penetration
995 mainframe
The V-style mainframe of the 995 Moldboard Plow distributes weight for good penetration.
The mainframe is made of high-strength 178-mm x 102-mm (7-in. x 4-in.) tubing that is 8-mm (5/16-in.) thick to handle the stress of high-horsepower tractors working in tough ground conditions.
Moldboard frame pivots with the bottoms
Moldboard frame
All 995 Moldboard Plows use only one set of bottoms.
The moldboards are reversed laterally by a hydraulic cylinder that is standard equipment. There are several advantages of this design over traditional two-way roll-over plows with two sets of bottoms:
- Requires less 3-point hitch capacity
- Requires less ballasting of the tractor front end
- Eliminates initial cost and service requirements for one complete set of standards and bottoms
Integral on-land hitch provides excellent maneuverability
Integral on-land hitch The integral hitch gives unexcelled maneuverability in turns and when parking in tight areas:
- Category 3/3N Quik-Coupler compatible
- Tractor rockshaft lever controls the raising and lowering of the plow
- Maximum plowing depth to 356 mm (14 in.)
- Provides ample clearance between the tractor tires and the plow
Adjust front gauge wheels to limit plowing depth
Front gauge wheels
The front gauge wheels can be adjusted to limit the plowing depth to 356 mm (14 in.). They come equipped with 6.70-15 tires.
Rear gauge wheels come in standard equipment
995 Moldboard Plow rear gauge wheels
Two front and one rear gauge wheels are standard equipment on the 995 Moldboard Plow:
- Equipped with 6.70-15 tires for good flotation
- Easy turnbuckle adjustment on rear gauge wheel
- Adjustable front gauge wheels limit the plowing depth to 356 mm (14 in.)
Integral on-land hitch provides excellent maneuverability
Integral on-land hitch
The integral hitch gives unexcelled maneuverability in turns and when parking in tight areas:
- Category 3/3N Quik-Coupler compatible
- Tractor rockshaft lever controls the raising and lowering of the plow
- Maximum plowing depth to 356 mm (14 in.)
- Provides ample clearance between the tractor tires and the plow
|
Horsepower required
|
| Option 1 |
5-bottom: 96.9-123 kW
130-165 hp |
| Option 2 |
6-bottom: 111.9-130.5 kW
150-175 hp |
| Option 3 |
7-bottom: 130.5-149.1 kW
175-200 hp |
| Option 4 |
8-bottom: 149.1-186.4 kW
200-250 hp |
|
Key Specs
|
| Plowing depth |
35.6 cm
14 in. |
| Horsepower required - Option 1 |
5-bottom: 96.9-123 kW
130-165 hp |
|
Hitch
|
| Type |
Category 3N or 3 |
| Steering |
Integral, in-furrow
No
Integral, on-land
Yes
Semi-integral, on-land
No
Drawn, in-furrow
No
Drawn, on-land
No
Quick-coupler compatible
Yes
|
| Reversible |
Type of reversing
Hydraulic cylinder
Yes |
|
Clearances
|
| Vertical |
81.3 cm
32 in. |
|
Standards
|
| Shearbolt |
Standard |
| Safety trip |
Optional |
| Spring reset |
No |
| Hydraulic |
No |
|
Landing
|
| l |
l |
Accessories and Attachments
Double landsides
Double landsides allow converting five- and six-bottom plows equipped with wedges for operation in hard ground conditions.
The bundle includes one extra set of landsides for the front bottoms, four regular large landsides for the rear bottom, and all necessary attaching hardware.
Double landsides
Double landsides allow converting five- and six-bottom plows equipped with wedges for operation in hard ground conditions.
The bundle includes one extra set of landsides for the front bottoms, four regular large landsides for the rear bottom, and all necessary attaching hardware.
Landsides and Wedges - BP16598
Landsides with wedges
This bundle is for five- or six-bottom plows. It allows converting five- or six-bottom plows equipped with double landsides for operation in average-to-soft soil conditions.
The bundle includes a set of wedges for all bottoms, one set of extra-large landsides for the rear bottom, and all the necessary attaching hardware.
NOTE: Due to line-of-draft characteristics, the seven- and eight-bottom plows do not require use of wedges.
Landsides and Wedges - BP16604
Landsides with wedges
This bundle is for five- or six-bottom plows. It allows converting five- or six-bottom plows equipped with double landsides for operation in average-to-soft soil conditions.
The bundle includes a set of wedges for all bottoms, one set of extra-large landsides for the rear bottom, and all the necessary attaching hardware.
NOTE: Due to line-of-draft characteristics, the seven- and eight-bottom plows do not require use of wedges.
Warning Lights and Emblem
SMV Security Emblem - BP16365
