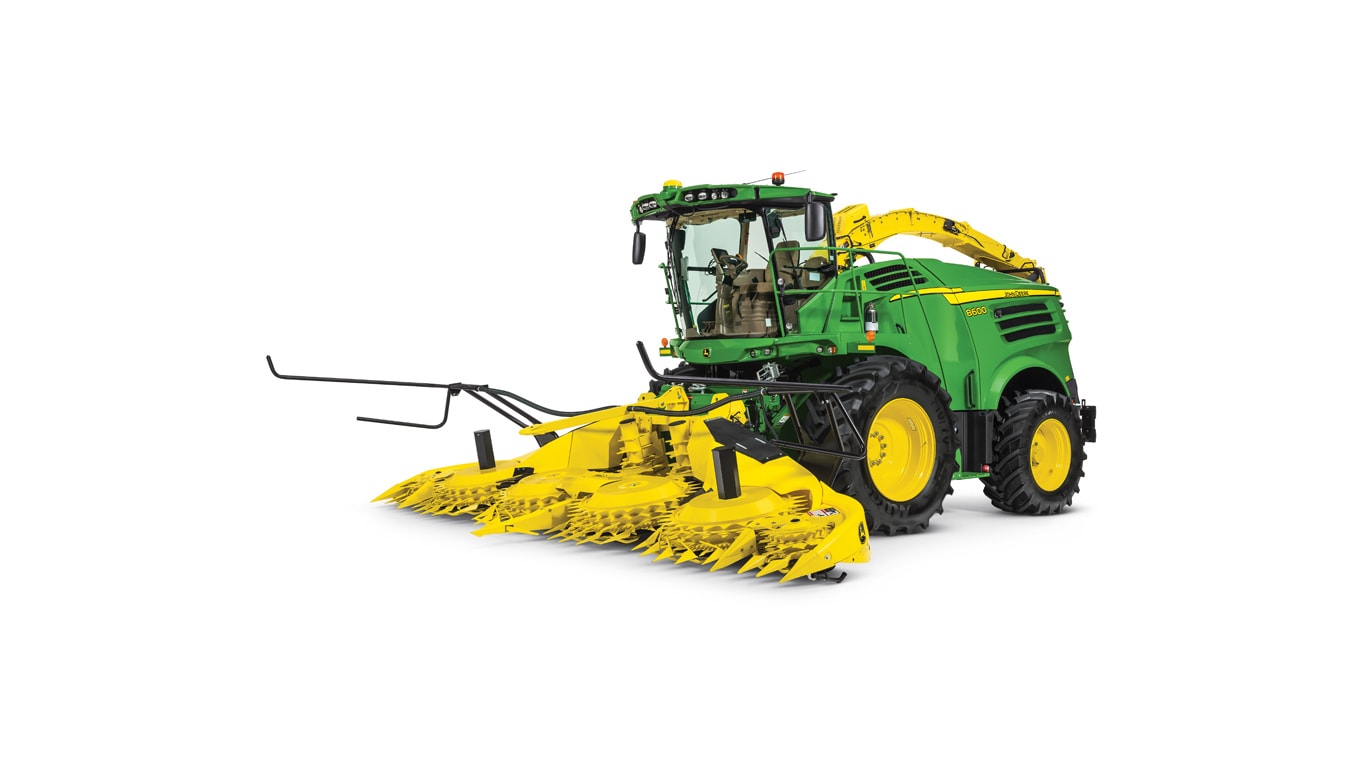

John Deere 770

Saw blades with changeable segments

The saw blades of John Deere rotary crop headers cut quickly and thoroughly at a high speed of rotation. As the fast-turning blades cut the full width, crops can be harvested regardless of the row spacing. Thanks to this row-independent harvesting technology, the field can be worked from any side, which is particularly important for down crop.

The fast-turning saw blades allow crops with a lot of weeds to be harvested easily. Besides maize, a wide range of crops such as sorghum, whole crop silage, oilseed, canola, pampas grass, and miscanthus can be harvested.

Key features:

• Fast turning saw blades can cut in difficult harvesting conditions to give the operator increased uptime.
• Headers can be used in various stemmed crops and there is no need for extra headers, which saves on the cost of operation.

Lengthwise feeding provides an even cut

Bundled, lengthwise feeding toward the feed rolls

The header bundles the harvested crop perfectly and feeds it to the chopping unit of the self-propelled forage harvester (SPFH) lengthwise for an even cut. Only even, lengthwise feeding allows for the full use of the power installed on the SPFH.

Even chopping of the crop

Key feature:

• Bundling of lengthwise stalks is the basis for perfect chopping quality (Performance).

Deflector plates (purple) on the header

Additional deflector plates (purple) guide the crop toward the blades. This results in a more even stubble height.

AHC sensors on the header

The AHC sensors are located at the two outermost points from the header. The sensors continuously scan the ground and quickly adjust the height and inclination of the attachment. This quick adjustment guarantees a constant stubble height.

The AHC sensors are optional equipment for eight-, 10-, and 12-row machines.

Third height sensor on the header

For eight-, 10-, and 12-row machines, the third sensor is optional equipment. The third sensor is only available in combination with RowSense© system as it is installed in the central RowSense pointer.

The two-sensor Advanced Header Control (AHC) does a good job in most conditions. The optional third sensor is needed in extremely uneven terrain or on wide headers.
