Combine Advisor is a suite of technologies designed to maximize harvesting profits. The features help the operator set and optimize the S700 Combine and then automates the combine to maintain performance target as conditions change. Purchasing Combine Advisor grants access to the Combine Advisor application, which houses three automation technologies: HarvestSmart™ system for automation of feed rate, Active Terrain Adjustment™ system for terrain change management, and Auto Maintain with ActiveVision™ cameras for crop condition change management.
Combine Advisor also provides easy navigation of the S700 set and optimize features: harvest settings application for initial set up and setting storage, VisionTrak system for monitoring losses, and Optimize Performance for step-by-step guidance of combine setting optimization. Once John Deere Combine Advisor is set into motion, the operator will experience ease-of-use benefits coupled with increased productivity.
Code | Description |
1962
| Combine Advisor Base features, plus Active Terrain Adjustment and Combine Advisor. Includes ActiveVision cameras.
Base features include Optimize Performance, TouchSet™ system, VisionTrak, HarvestSmart, and engine speed management. HarvestSmart and engine speed management only included with code 2020 (ProDrive™ transmission). Engine speed management only available with Final Tier 4 (FT4) engines. |
Combine Advisor bundles are available for model year 2018 and future models. The bundles include ActiveVision cameras, harnesses, Auto Maintain, and software.
Dealer installation instructions are included, as weldments and drilling are required. The process will most likely take around 10 hours of labor.
| Bundle | Description |
BXE11034 | Combine Advisor retrofit bundle for S760 and S770 Combines Also requires BXE10948 Active Terrain Adjustment bundle if the combine is not already equipped with code 1961 (base features + Active Terrain Adjustment) |
| BXE11035 | Combine Advisor retrofit bundle for S780 and S790 Combines Also requires BXE10948 Active Terrain Adjustment bundle if the combine is not already equipped with code 1961 (base features + Active Terrain Adjustment) |
Combine Advisor retrofit bundle components

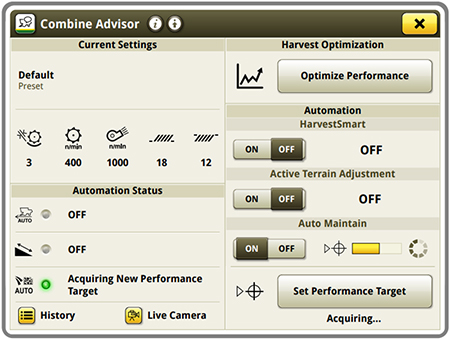

Combine Advisor run pageThe Combine Advisor application provides the tools needed to set the combine to get the most out of it and automatically adjust settings to maintain optimum performance. Inside this application on the 4600 CommandCenter™ Display, the operator will find many tools including easy-to-adjust current machine settings, sensitivity settings for automation, application status indicators, automation activity history overviews, and live feeds of grain analysis cameras.
Additionally, the operator can access Optimize Performance, activate the three automation technologies, and set the performance targets the machine will automatically adjust to maintain.
Feature benefits:
Functionality:

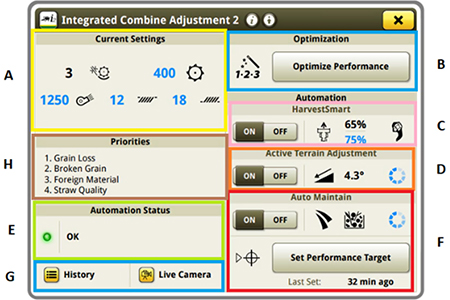

ICA2 run page, model years 2018 and 2019

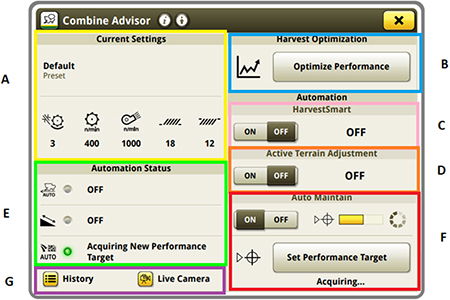

Combine Advisor run page changes beginning with model year 2020| ICA2 run page, model year 2018 | Combine Advisor run page, model year 2020 |
| Section A (yellow highlight): takes the operator to the current settings for concave clearance, rotor speed, fan speed, chaffer clearance, and sieve clearance, giving quick access to critical combine adjustments. | Section A (yellow highlight): takes the operator to the current settings for concave clearance, rotor speed, fan speed, chaffer clearance, and sieve clearance, giving quick access to critical combine adjustments. It also shows the currently selected preset. |
| Section B (blue highlight): the Optimize Performance button helps the operator optimize combine performance. | Section B (blue highlight): the Optimize Performance button helps the operator optimize combine performance. |
| Section C (pink highlight): the HarvestSmart system automates ground speed control during harvest to maintain a constant crop load. | Section C (pink highlight): the HarvestSmart system automates ground speed control during harvest to maintain a constant engine load. The Manage Target with Grain Loss setting enables an automatic target adjustment based on loss levels. |
| Section D (orange highlight): the Active Terrain Adjustment system produces better grain quality and fewer losses while controlling tailings volume when harvesting up and down hills. | Section D (orange highlight): the Active Terrain Adjustment system produces better grain quality and fewer losses while controlling tailings volume when harvesting up and down hills. |
| Section E (green highlight): automation status | Section E (green highlight): Combine Advisor system – HarvestSmart, Active Terrain Adjustment, and Auto Maintain. |
| Section F (red highlight): Auto Maintain monitors the combine and makes adjustments to maintain the performance at the operator-set performance target. | Section F (red highlight): Auto Maintain monitors the combine and makes adjustments to maintain the performance at the operator-set performance target. |
| Section G (purple highlight): Auto Maintain also uses the buttons in section G to allow a glimpse into live views of the clean grain and tailings elevators and allows operators to use an analyzer function to see what Auto Maintain is seeing. It also shows a list of adjustments made by Auto Maintain and Active Terrain Adjustment. **In sections C, D and F select the screen area to see additional sensitivity settings for each system. | Section G (purple highlight): Auto Maintain also uses the buttons in section G to allow a glimpse into live views of the clean grain and tailings elevators and allows operators to use an analyzer function to see what Auto Maintain is seeing. It also shows a list of adjustments made by Auto Maintain and Active Terrain Adjustment. **In sections C, D and E select the screen area to see additional sensitivity settings for each system. |
| Section H (brown highlight): indicates the operator’s priorities for automation | --- |
 |
|
Auto Maintain with ActiveVision cameras is technology that works to automatically adjust five primary S700 Combine settings to maintain the user set performance target. When harvesting corn, soybeans, wheat, canola, or barley, the combine will maintain the performance of everything from grain loss and grain quality, to foreign material in the grain tank. The ActiveVision cameras, along with grain loss monitors, are specifically designed to identify the impact of crop condition changes and adjust the combine to maintain the performance target, allowing the operator to focus on other challenges of harvest.
Feature benefits:
Simplify harvest by automating the critical workload of constantly managing combine settings when conditions change
Increase productivity by allowing ActiveVision cameras to identify and address tough-to-spot problems such as cracked grain
Provide flexibility in planning overall business and increase the efficiency of the combine independent of operator experience
Combine Advisor run pageFunctionality
Auto Maintain looks at the level at which the combine is performing, sets that as the goal, and automates combine settings to continually hit the target performance goal over time. Auto Maintain uses existing sensor inputs along with the ActiveVision cameras to make decisions for accurate combine adjustments. It does not use grain moisture as an input, however. Auto Maintain is able to hit the target goal by automatically making adjustments to the threshing speed, concave clearance, chaffer clearance, sieve clearance, and fan speed. The ActiveVision cameras have been trained to analyze the clean grain and tailings material and input that analysis into the Auto Maintain system. Auto Maintain will show the operator how it has been performing with a constantly updating historical graph of losses, grain quality, and foreign material in the clean grain. The green-shaded area below indicates the performance targets set. The colored lines show the ongoing levels of losses and quality. For example, the green, purple, and orange lines below show a period of time outside of the green-shaded acceptable area. Auto Maintain recognizes this and makes the appropriate adjustments to meet the set targets.

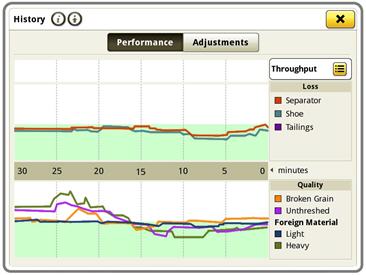

Historical Auto Maintain performance graphThe ActiveVision cameras can detect broken and unthreshed grain. The cameras will also detect lightweight and heavy foreign material to make the appropriate combine settings changes. The system provides a live feed of both the grain and tailings cameras and will highlight the parameters outlined to make it easier to analyze. The live view and historical graphs update constantly, and the cameras will even tell the operator if there is debris on the lens.
Grain analysis live view | Combine Advisor with Auto Maintain is available as a factory-installed option on combines since model year 2018. Auto Maintain is compatible in corn, soybeans, wheat, canola, and barley. Retrofit kits, BXE11034 and BXE11035 are available. Please refer to that section for more information. |
The 4600 CommandCenter is the central information system used on all John Deere S700 Combines starting in 2018. The display allows the operator to view various important harvest and diagnostic information during harvesting and see it in a layout based on operator preferences. The 4600 CommandCenter has been developed in combination with the CommandARM™ console and the multifunction control lever to deliver outstanding ergonomics paired with best-in-class natural navigation.
4600 CommandCenterFeature benefits:
Functionality:
Five run pages can be configured by the operator according to their preferences for easy, logical, and intuitive operation. By scrolling to the left and right on the display, the operator can conveniently switch from run page to run page just like on a smartphone. In addition, the operator can switch the run pages from the multifunction control lever. This means the operator does not have to move their hand off of the controls but is still able to navigate through run pages.
John Deere 4600 CommandCenter controlsA. Next and previous run page
B. Status center
C. Shortcut keys
D. Menu
E. Run page
F. Title bar
The 4600 CommandCenter features up to nine configurable buttons, allowing operators to personalize the access to their favorite apps so they spend less time browsing through the menu.
Nine configurable shortcut keys for quick access on displayBelow the 4600 CommandCenter the operator will find 14 shortcut keys guiding directly through the most important areas during the harvesting day, saving time and clicks as well as keeping the main focus on the harvest.
The 14 shortcut keys below display grants quick and easy access:
Operators that prefer even more digital surface than the 4600 CommandCenter are able to equip their S700 Combine with an Extended Monitor on the cornerpost. The Extended Monitor includes a bracket and adapter harness. The bracket allows the operator to flip up the Extended Monitor for improved visibility during road transport and maneuvering the combine.
Extended MonitorThe 4600 CommandCenter in the armrest supports following features:
Layout manager selection page
Layout manager module buildThe 4600 CommandCenter features a modular-designed layout manager, so operators can easily create the page views that meet their needs. From the factory, machines are equipped with default run pages. An unlimited number of run pages can be added to the 4600 CommandCenter based on operator preference or operational needs. Toggling between run pages is as easy as using the arrow buttons on the top right portion of the title bar.
There are a number of different ways to get meaningful on-screen help when navigating the 4600 CommandCenter. Operators can find the help icon on the shortcut bar on the bottom of every page. This icon gives detailed information on everything from combine operation to application information. Simply select the help icon and navigate to the information section that is needed.
Help icon
Help center main pageAdditionally, application-based help is also available in all locations of the CommandCenter. Simply click on the {i} icon available on the title bar, and it will lead directly to more information on the application currently being used.
{i} iconWork setup places the settings needed to properly setup AutoTrac, documentation, and Section Control in a single location.
Settings include:
Work setup can be quickly accessed from a shortcut key or the display menu, allowing operators and managers to quickly review display and machine settings to ensure a job is completed properly.
Work setup shortcut key (far left)Option code | Description |
1822 - base | 4600 CommandCenter 254-mm (10-in.) color display – 4600 processor Includes 4600 processor v2 and single 254-mm (10-in.) display. Processor equipped with CommandCenter controls and four video inputs included. CommandCenter Premium Activation capable. Documentation and CommandCenter AutoTrac are included in base software. For Machine Sync and A-B line sharing, an additional 2630 display is necessary. For more details on Machine Sync, please reference this dealer bulletin. |
1828 | 4600 CommandCenter 254-mm (10-in.) color display with extended monitor – 4600 processor Includes 4600 processor v2 and a 254-mm (10-in.) display on CommandARM with a second 254-mm (10-in.) display on cornerpost. Extended monitor includes bracket and adapter harness. Processor equipped with CommandCenter controls and four video inputs included. CommandCenter Premium Activation capable. Documentation and CommandCenter AutoTrac are included in base software. |
1851 - base | CommandCenter AutoTrac Activation Includes non-transferrable, machine-specific AutoTrac functionality on the integrated Gen 4 CommandCenter. CommandCenter AutoTrac is non-transferable and not available on the GreenStar™ 3 (GS3) 2630 Display. |
1857 | CommandCenter Premium 3.0 Activation Includes non-transferrable, machine-specific AutoTrac, Data Sync, Section Overlap Control, AutoTrac RowSense™, and In-Field Data Sharing functionality on the Gen 4 CommandCenter. |
NOTE: Active Concave Isolation is only available on S780 and S790 Combines.
ACI increases throughput in tough threshing small grains and rice without sacrificing overall grain savings. This system allows producers to continue to harvest outside the optimal harvest window and conditions. The concaves are suspended by hydraulic cylinders that increase the amount of crop that is being threshed as well as reduces the amount of rotor noise that is heard by the operator.
ACIThe ACI feature hydraulically suspends the concaves; the consistency of the concave gap is increased along with decreasing sensor drift for a more accurate concave distance. Material flow through the threshing section of the machine is smoother, giving more consistent threshing.
Harvesting in slopes
Harvesting in rolling groundThe industry-exclusive ProDrive system uses PowerShift™ transmission technology to automatically shift between two speed ranges as ground conditions and terrain change to keep the combine harvesting at the desired ground speed. Valuable harvest time will no longer be lost shifting on hills and when exiting fields to start transporting.
Feature benefit:
The ProDrive system on S700 Combines includes an integrated HarvestSmart™ feedrate control system to provide the maximum productivity and reduce operator stress and fatigue.
Functionality:
The ProDrive hydrostatic motor has a higher displacement than the previous hydrostatic systems. Both the pump and motor are variable-displacement components that allow ProDrive to maintain high levels of torque to the ground throughout each of the two operating-speed ranges.
Range one can be set for typical harvesting speeds. Range two can be used when higher speeds are needed during harvest or when transporting the combine.
The ground speed can be infinitely varied within both modes by the operator, using the multifunction control lever on the CommandARM™ armrest console. The multifunction lever regulates the high-capacity, variable hydrostatic pump and motor that drives the ground speed.
Using the navigation tools on the armrest, the operator can dial in the desired maximum-attainable speed within each of the two speed ranges. The maximum forward speed in either range can be set from 0 to 38.6 km/h (0 to 24 mph). The maximum speed in range one cannot be set higher than the maximum speed for range two. For example, if a maximum harvest speed of 13 km/h (8 mph) is desired and set, the full forward position of the hydrostatic control handle will deliver the speed of 13 km/h (8 mph).
The ProDrive transmission is equipped with an electrohydraulic differential lock with a four-pinion differential. Non-ProDrive combines have a two-pinion differential. When operating in muddy, hilly terrain or in sandy conditions that may cause one of the tires to lose traction, this differential lock enables the operator to maintain productivity. If traction is lost, the operator can quickly and easily engage the differential lock by pressing the differential lock button on the CommandARM armrest console. An indicator light within the button alerts the operator that the differential locking feature is engaged.
The TriStream rotor is unique to John Deere because it features a slightly tapered design in the threshing area for best-in-class grain quality while dramatically reducing the growling that often comes with heavy rotor loads. The TriStream rotor is recommended for producers who harvest mainly coarse grains along with easy-threshing small grains.
The spiral vanes surrounding the rotor guide the crop material through the threshing and separating area in a pull-and-release action to improve performance. This John Deere S700 Combine feature will generate less power consumption.
Feature benefits:
S700 TriStream rotorFunctionality:
Fifteen cast-constructed threshing elements provide superior material handling with excellent grain quality. The elements spiral around the rotor to control material flow. In some harvesting environments, the dense-pack configuration (nine additional threshing elements) may be necessary.
TriStream threshing elementsConical top covers allow for smooth material movement within the threshing and separating area. The top covers have a radius larger than the rotor, allowing the material to expand as it travels along the top of the rotor. This design uses the pull-and-release action of crop material, aiding in the threshing and separating to reduce power consumption.
Conical top coversThe industry-exclusive variable-stream rotor features a tapered design in the threshing section, which improves crop flow, enhances grain quality, and reduces power consumption. The variable-stream rotor with adjustable top cover transport vanes is recommended for producers of rice and in tough threshing conditions.
The variable-stream rotor smooths crop flow during tough handling conditions to maximize throughput. Along with the tough-material handling capabilities of the variable-stream rotor configuration, the straw quality and length can be improved due to the electrically adjustable top cover transport vanes.
Feature benefits:
S700 variable-stream rotorFunctionality:
Fifteen cast-constructed threshing elements provide superior handling, improved durability and serviceability, and maintain excellent grain quality. The elements spiral around the rotor to move and control the material. In some harvesting conditions, 12 additional bolt-on threshing tines may be installed for increased material handling.
Rear discharge flights and a tapered rear cone improve material handoff to the rear discharge beater.
Electrically adjustable transport vanes allow operators to change the vane angle within the cab. Longer straw length can be accomplished when vanes are in the advanced position.
Electric actuator for adjustable vanesActiveYield delivers automatic yield calibrations to the operator without spending time manually performing yield calibrations.
Feature benefit:
Functionality:
ActiveYield eliminates time-consuming manual yield calibrations and replaces them with automated sensors that calibrate the machine by measuring the grain as the tank fills. This enables decisions to be made in real time without leaving the cab.

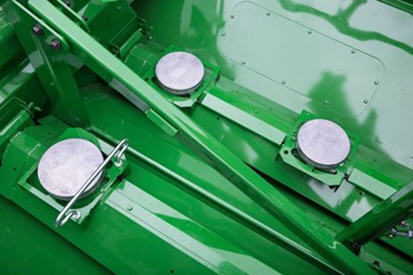

ActiveYield sensors in grain tankWhen the ActiveYield option is enabled and the Terrain Compensation Module (TCM) in the StarFire™ 3000 or StarFire 6000 Receiver has been calibrated, ActiveYield is ready to go to work. As grain is harvested and enters the tank, the three sensors within the grain tank collectively measure the grain as it piles over the cross auger covers. If all conditions are acceptable (header and separator on, grain is flowing, and machine level is within 4 degrees) load collection occurs from 900 through 3000 kg (2000 through 6600 lb).
Any pitch and roll of more than 4 degrees from center during load collection will cause the system to reject that load due to the grain pile shifting in the tank. A new calibration load starts once grain is below the sensors on the cross auger covers.
Stored calibration loads are replaced by new ones as the system continues to collect data. The system may be disabled at any time by accessing the moisture setup page and unchecking the ActiveYield box if manual yield calibration is desired.
ActiveYield calibration location
ActiveYield InformationActiveYield is available for model year 2016 through model year 2019 S760, S770, S780, and S790 Combines and requires the 4600 CommandCenter™ Display, GreenStar™ 3 2630 Display, or GreenStar 3 CommandCenter. Additionally, a StarFire 3000 or 6000 Receiver must be installed on the combine with the TCM calibrated for ActiveYield to detect machine pitch correctly. Manual yield calibration is not required as each crop has a built-in default value.
Harvest Doc™ system yield data collected by an ActiveYield system is only compatible with the John Deere Operations Center. John Deere does not guarantee compatibility of ActiveYield collected documentation with John Deere APEX™ software or third-party software systems.
The Dyna-Flo Plus cleaning shoe is the heart of the S700 Combine cleaning system. The system is made up of a unique design consisting of aluminum and high-strength steel that reduces overall weight while maintaining overall strength. The Dyna-Flo Plus cleaning shoe also features an enhanced drive system that requires only one flywheel for optimal shoe performance and maximizes uptime.
Feature benefit:
Dyna-Flo Plus cleaning shoe
Enhanced drive systemThe Dyna-Flo Plus cleaning system begins with conveyor augers located beneath the concave area, where the volume of threshed material is highest, to evenly move material onto the cleaning shoe (1). The deep auger troughs provide uniform distribution of material to the cleaning shoe with less bunching, even on sloping terrain and when harvesting up and down hills.
Dyna-Flo Plus cleaning shoeOnce grain is on the cleaning shoe, the raised-center front chaffer cleans up to 40 percent of free grain before it reaches the main chaffer (3). High-velocity air from the cleaning fan elevates any light material traveling over the end of the front chaffer, resulting in more aggressive separation of chaff and increased cleaning performance (2). The main chaffer provides grain separation from chaff as the grain passes through the main chaffer to the sieve (4).
The sieve provides proper sizing of grain from material other than grain (5). Any grain that passes through the sieve is elevated to the grain tank while some grain or material other than grain flows to the tailings return system for reprocessing. On S760, and S770 Combines, the tailings material is directed back into the threshing section of the separator for additional threshing. The tailings material on the S780 and S790 Combines are directed to the active tailings return system for additional threshing, and then directed back on the return pan and then onto the main chaffer for additional cleaning (6).
The 4200 and 4600 CommandCenter, also known as the Generation 4 CommandCenter, create the primary user interface for 6R, 7R, 8R/8RT, and 9R/9RT/9RX Tractors; F4365 High-Capacity Nutrient Applicator; 4 Series Self-Propelled Sprayers; and S700 Combines. The Generation 4 CommandCenter provides an excellent, user-savvy, efficient operating experience.
Generation 4 CommandCenter is available in the following configurations:
For growers wanting to maximize their viewing real estate, the 25.4-cm (10-in.) touchscreen color display is an excellent choice. With the 25.4-cm (10-in.) display, the title bar and all shortcut keys may be viewed at all times, allowing operators to monitor more information at once.
John Deere 4200 CommandCenterA. Next run page
B. Status center
C. Expand shortcut keys
D. Menu
E. Run page
John Deere 4600 CommandCenterA. Next and previous run page
B. Status center
C. Shortcut keys
D. Menu
E. Run page
F. Title bar
A Generation 4 CommandCenter is made up of a processor and a display. Two processor options are available for the Generation 4 CommandCenter.
4200 CommandCenter 21.3-cm (8.4-in.) displayThe 4200 Processor is base equipment and only offered on 6R, 7210R, and 7230R Tractors.
It offers:
The table below shows the model year of machines equipped with CommandCenter. Upgrade kits are available for 4100 to 4600 for machines that came equipped with a 4100 CommandCenter from the factory. There are no upgrade kits for converting a 4200 to 4600 at this time.
4200 CommandCenter is available starting with model year 2019 6R, 7210R, and 7230R Tractors.
| Vehicles | Model year | 4200 Processor | 4600 Processor |
| John Deere tractors | |||
| 6R Series (AutoQuad™ transmission/CommandQuad™ transmission) Series | 2019 and newer | Standard | Not applicable |
| 6R (IVT transmission/DirectDrive), 7210R, 7230R Series | 2019 and newer | Standard | Option |
| 7250R, 7270R, 7290R, 7310R Series | 2014 and newer | Not applicable | Standard |
| 8R/8RT Series | Mid-2014 and newer | Not applicable | Standard |
| 9R/9RT/9RX Series | 2015 and newer | Not applicable | Standard |
| John Deere nutrient applicators | |||
| F4365 Nutrient Applicator | 2017 and newer | Not applicable | Standard |
| John Deere self-propelled sprayers | |||
| 4 Series Sprayers | 2018 and newer | Not applicable | Standard |
| John Deere combines | |||
| S-Series Combines | 2018 and newer | Not applicable | Standard |
Expect easier set-up, along with increased operator confidence, thanks to a simple, customizable interface. The improved design of the Generation 4 CommandCenter also aids in an optimal operating experience and maximizes uptime.
Some of the easy-to-use benefits of the Generation 4 CommandCenter include:
Producers can use a variety of implements with the Generation 4 CommandCenter as it is Agricultural Industry Electronics Foundation (AEF) ISOBUS compliant for manual control of IOSBUS implements (UT) as well as automatic section control (TC-SC) and documentation in ISOXML format (TC-Basic).
Help icon
Help center main pageAdditionally, application-based help is also available in all locations of the CommandCenter. Simply click on the {i} icon available on the title bar and it will lead directly to more information on the application currently being used.
Context-based help icon
Context-based help on iTEC™ system main pageDiagnostic text and information is available for better understanding of whether applications are operating as directed.
Machine monitor pageThe machine monitor application provides the operator instantaneous readings about the status or condition of the machine. Values shown in the machine monitor vary by application, but typically include parameters like engine speed, coolant temperature, and ground speed. The machine monitor supports run page modules in the Layout Manager, allowing the operator to populate specific machine parameters directly to a run page.
NOTE: The machine monitor application replaces part of the universal performance monitor in previous machines.
Work setup shortcut key (far left)
Work setupVideo capability
Tractors with a 4200 CommandCenter are equipped with one video input, and the 4600 CommandCenter Display has four video inputs. The operator has the ability to set a variety of triggers, including reverse, PTO, hitch, and selective control valve (SCV) levers to activate the camera. Once triggered, the image will then appear on the CommandCenter display. The camera (video observation system) is available through JD Parts and Ag and Industrial (A and I) Products.
NOTE: 6R Tractors equipped with a 4600 CommandCenter Display have two video inputs.
Help icon
4600 CommandCenter 25.4-cm (10-in.) DisplayThe 4600 Processor is the premium processor, offered as an option on all 6R*, 7210R, and 7230R Tractors and is standard on 7250R, 7270R, 7290R, 7310R, 8R/8RT, 9R/9RT/9RX Tractors, F4365 Nutrient Applicator, 4 Series Self-Propelled Sprayers, and S700 Combines.
Available features with the premium processor include:
*Only compatible with Infinitely Variable Transmission (IVT™) and DirectDrive™ transmission
Layout manager selection page
Layout manager module buildThe Generation 4 CommandCenter features a modular-designed layout manager, so operators can easily create the page views that meet their needs. From the factory, machines are equipped with default run pages. An unlimited number of run pages can be added to the Generation 4 CommandCenter based on operator preference or operational needs. Toggling between run pages is as easy as swiping the screen or using the arrow buttons on the top right portion of the title bar.
Users and access
Users and access allow the owner or manager to lock out certain functions to prevent operators from accessing or changing settings. Lock-out functions are managed with a defined four-digit code.
Lock-out features are available for:
Factory data reset
Hitch
Hydraulic
Transmission
Power take-off (PTO)
FieldCruise™ system
Display
Machine monitor
On-screen help and diagnostic text
There are a number of different ways to get meaningful on-screen help when navigating the Generation 4 CommandCenter. Operators can find the help icon on the shortcut bar on the bottom of every page. This icon gives detailed information on everything from tractor operation to application information. Simply select the help icon and navigate to the information section that is needed.
Work monitor pageThe work monitor application displays performance information about the task being performed by the machine. The operator is shown averages, totals, and productivity of the machine, such as area worked, average working speed, and fuel usage. The values of the work monitor can be reset by the operator at any time. Specific values of the work monitor can be configured by the operator to be shown on a run page.
NOTE: The work monitor application replaces part of the Universal Performance Monitor in previous machines.
Work setup application
Work setup places the settings needed to properly setup AutoTrac, Documentation, and Section Control in a single location.
Settings include:
Work setup can be quickly accessed from a shortcut key or the display menu, allowing operators and managers to quickly review display and machine settings to ensure a job is completed properly.
Create flags to mark items in the fieldMark areas of the field that need special attention or items that need to be addressed such as rocks, tile lines, or weed pressure. Flags previously recorded on the Gen 4 or GreenStar™ 3 (GS3) 2630 Display can be transferred between displays to ensure each operator is aware of upcoming field obstacles.
Document field boundaries
Manually drive field boundaries with the Generation 4 CommandCenter or import existing boundary information from the GS3 2630 Display or John Deere Operations Center. Gen 4 documentation data can be used to create boundaries from coverage within the John Deere Operations Center.
The display uses a streamlined boundary creation process that generates exterior and interior field boundaries from coverage, simplifying the process and reducing steps. Operators can delete interior boundaries without impacting the exterior boundary or headlands. In addition, operators can chose to turn boundaries off for section control while using them for field locator and documentation.
Headland boundaries can also quickly be generated by simply entering a distance or the number of passes from an exterior boundary.
Boundary creation from coverage
Headland creationBoundaries can be imported from the following sources:
Dual displayGeneration 4 CommandCenter display and GreenStar displays comparison and compatibility
The Generation 4 CommandCenter works in dual-display mode with GreenStar 3 2630 Display, GreenStar 2 1800 Display, and GreenStar 2 2600 Display.
Generation 4 CommandCenter may be configured to run with the following John Deere displays connected at the cornerpost of a John Deere tractor:
Vehicle applications will always be located on the Gen 4 CommandCenter.
View on-screen help to properly set up the display when in dual-display mode by clicking on the icon (pictured below).
Harvest is hectic. Producers are focusing on getting all the crop from the field to the bin within a tight harvest window. Using Machine Sync, those producers can focus more on grain harvest and grain quality, and worry less about keeping the grain cart under the spout when unloading on the go. Gen 4 Machine Sync provides a solution to harvest stress by creating a wireless network between the tractor and combine to enable on-the-go unloading by synchronizing tractor speed and direction of travel with the combine.
Machine Sync works with In-Field Data Sharing to show the location of all combines and tractors within the fleet of Gen 4 machines harvesting in the field. Knowing the exact location of multiple combines as well as their grain tank fill level and unloading auger status allows the grain cart operators to be in the right place at the right time.
The Generation 4 CommandCenter was designed to provide a consistent user experience by providing full-screen viewing of more run page modules, shortcut keys, and precision agriculture capabilities.
Expect easier set-up, along with increased operator confidence, thanks to a simple, customizable interface. The improved design of the Generation 4 CommandCenter also aids in an optimal operating experience and maximizes uptime.
In order to increase your efficiency, take advantage of the following features offered by the Generation 4 CommandCenter:
Layout manager selection pageLayout manager module buildMachine monitor pageWork monitor pageCreate flags to mark items in the fieldBoundary creation from coverageHeadland creationDual displayNOTE: Vehicle applications will always be located on the Gen 4 CommandCenter.
Setup base stations in Fields and Boundaries applications

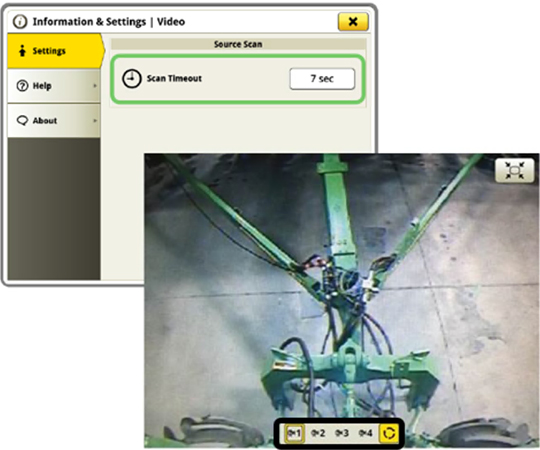

Scan through videos with video looping
Harvesting in corn
Designed for performance in coarse grain crops, the TriStream© rotor and Dyna-Flo© Plus cleaning shoe efficiently thresh and clean grain in tough harvesting conditions. The TriStream rotor helps maximize fuel efficiency with technology that reduces the force required to move material through the combine by as much as 20 percent. High capacity starts at the feeder house, where the S Series provides large areas of clearance for high volumes of crop to flow uninterrupted.
Harvesting in wheat
Truly tough conditions demand more than simple solutions. Rather than slightly improve performance in rice, canola, wheat, barley, oats, or other tough small grains, John Deere S7 Combines set new capacity standards with four crucial components: Active Concave Isolation, a high-performance feeder house, heavy-duty interrupter grates with integrated interrupters, and the variable-stream rotor. When you’re looking at a storm on the radar and you don’t have time to spare, you can run full throttle and still put your toughest crop into the machine without any issues.
Quick and easy adjustments in the cab
The more time you can spend harvesting and the less time spent making adjustments means more daily performance. The S Series Combine offers more convenience from the cab with platform tilt, precision residue, and easy crop changeover when it’s time to move fields. Whatever harvest throws at you, you can keep moving with the touch of a button.
The faster you can get to ™ and into ™ your fields, the more productive you are. John Deere S7 Series Combines make it easy. Tracks help you get into the field sooner and finish faster. The ProDrive© system lets you smoothly shift between two speed ranges (field and transport) with the push of a button; you’ll no longer have to stop to shift when going up or down hills or when you’re exiting a field.

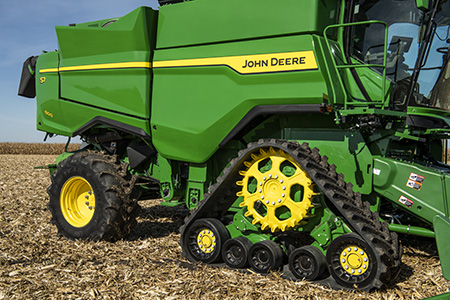

Harvester with tracks

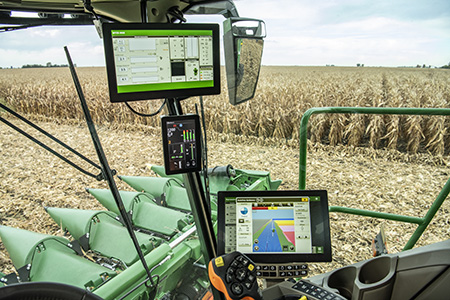

In-cab adjustments with CommandARM console
Comfortable S700 Combine cab

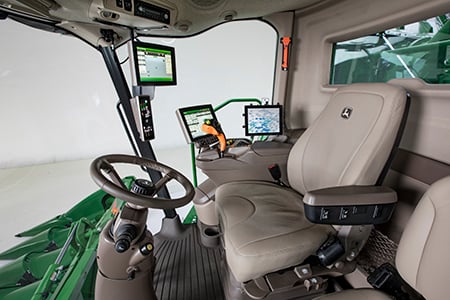

The S Series Combine Select cab is a great place to spend a long harvesting day. The intuitive CommandARM© console, along with the G5Plus CommandCenter© Display, delivers easy-to-understand harvest run screens. The multi-function lever fits your hand perfectly to give you smooth hydrostatic speed control, unloading options, and more. An air-suspension swivel seat adjusts four ways with lumbar adjustments to give you just the right amount of support. For even more comfort, step into the Premium cab, equipped with a leather steering wheel, a leather, lumbar-supported operator seat that is heated and ventilated, plus a folding instructor seat. Even small cab comforts can make a big difference over long harvest days.

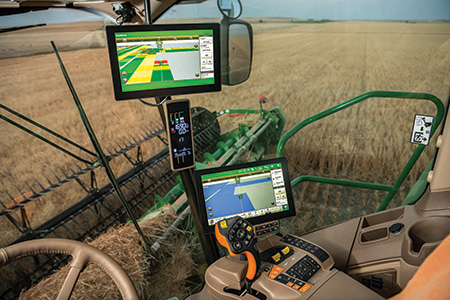

Harvesting technology in the cab
S Series Combines deliver more precision with integrated technologies to help you make upcoming business decisions with more accuracy. They learn on-the-go to improve your harvest, reduce losses, or leave cleaner grain. You’ll collect more accurate data, the automated technologies will improve harvesting results, and connecting all your machines will help you make more informed decisions. What’s even better, they do much of this automatically in the background without you having to worry about it, so you can focus on the harvest.
| Engine | |
| Engine type | John Deere PowerTech 13.6 L 830 cu in. |
| Rated power | 405 kW 543 hp |
| Fuel capacity | 1,250 L 330 gal. |
| Threshing/ Separating | |
| Rotor length | 312 cm 123 in. |
| Rotor diameter | 76.2 cm 30 in. |
| Concave area | 1.1 m2 11.8 sq ft |
| Separating area | 1.54 m2 16.6 sq ft |
| Cleaning | |
| Total cleaning area (louvered) | 5.9 m2 63.5 sq ft |
| Grain handling | |
| Grain tank size | 14,100 L 400 bu |
| Unloading rate | 135 L/s 3.8 bu/sec |
| Engine | |
| Emission level | Final Tier 4 / Tier 2 (Australia/New Zealand) |
| Rated speed | 2,000 rpm |
| Power boost @ rated speed | 37 kW 50 hp |
| Feeding | |
| Drive type | Fixed or multi-speed |
| Conveyor chain slat type | Cast iron |
| Width | 139.7 cm 55 in. |
| Length | 172.5 cm 67.9 in. |
| Feed Accelerator, Stone Trap (FAST) | Reverser Standard Standard |
| Threshing/ Separating | |
| Separator type | Rotary |
| Rotor speed range | High: 400-1,000 rpm Low: 210-530 rpm |
| Discharge grate area | 0.45 m2 4.8 sq ft |
| Cleaning | |
| Front chaffer | 0.5 m2 5.4 sq ft |
| Front chaffer extension | 0.8 m2 8.6 sq ft |
| Chaffer | 2.5 m2 26.9 sq ft |
| Sieve area | 2.1 m2 22.6 sq ft |
| Cleaning fan speed | 620-1,350 rpm |
| Grain handling | |
| Unloading auger length | 6.9, 7.9 or 8.7 m 22.5, 26 or 28.5 ft |
| Peak unloading rate | 150 L/s 4.2 bu/sec |
| Engine | |
| Maximum power | 460 kW 617 hp |
The camera-ready feature is optional on all S700 Combines and provides factory-installed observation camera harnesses and brackets in the grain tank, on the unloading auger, and at the rear of the combine.
John Deere value:
Functionality:
Rearview camera location
Unloading auger camera location
Unloading auger camera location
Grain tank camera location
Camera trigger menu
NOTE: 4600 CommandCenter is capable of viewing up to four cameras simultaneously.
NOTE: Cameras are not included with factory-installed option. Please order cameras from Service Parts.
Parts included for side hill packageThe side hill performance package can improve combine performance on slopes up to 8 degrees (14 percent) by substantially reducing cleaning shoe grain loss to acceptable levels.
Feature benefit:
Functionality:
The side hill kit installed in the cleaning shoe of S700 Combines allows grain to be evenly distributed across the entire width of the shoe when harvesting in slopes. As grain moves to the rear of the combine, the dividers keep grain contained into four individual bays which prevents overloading one side of the cleaning shoe. Additionally, the rubber agitator paddles in each individual bay work with the oscillating motion of the cleaning shoe to move grain toward the center of each bay for increased utilization of the entire cleaning shoe width for increased performance and productivity.
Parts included for side hill packageThe side hill performance package can improve combine performance on slopes up to 8 degrees (14 percent) by substantially reducing cleaning shoe grain loss to acceptable levels.
Feature benefit:
Functionality:
The side hill kit installed in the cleaning shoe of S700 Combines allows grain to be evenly distributed across the entire width of the shoe when harvesting in slopes. As grain moves to the rear of the combine, the dividers keep grain contained into four individual bays which prevents overloading one side of the cleaning shoe. Additionally, the rubber agitator paddles in each individual bay work with the oscillating motion of the cleaning shoe to move grain toward the center of each bay for increased utilization of the entire cleaning shoe width for increased performance and productivity.

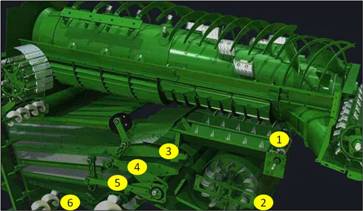

The Dyna-Flo Plus cleaning shoe is the heart of the S700 Combine cleaning system. The system is made up of a unique design consisting of aluminum and high-strength steel that reduces overall weight while maintaining overall strength. The Dyna-Flo Plus cleaning shoe also features an enhanced drive system that requires only one flywheel for optimal shoe performance and maximizes uptime.
Feature benefit:
Dyna-Flo Plus cleaning shoe
Enhanced drive systemThe Dyna-Flo Plus cleaning system begins with conveyor augers located beneath the concave area, where the volume of threshed material is highest, to evenly move material onto the cleaning shoe (1). The deep auger troughs provide uniform distribution of material to the cleaning shoe with less bunching, even on sloping terrain and when harvesting up and down hills.
Dyna-Flo Plus cleaning shoeOnce grain is on the cleaning shoe, the raised-center front chaffer cleans up to 40 percent of free grain before it reaches the main chaffer (3). High-velocity air from the cleaning fan elevates any light material traveling over the end of the front chaffer, resulting in more aggressive separation of chaff and increased cleaning performance (2). The main chaffer provides grain separation from chaff as the grain passes through the main chaffer to the sieve (4).
The sieve provides proper sizing of grain from material other than grain (5). Any grain that passes through the sieve is elevated to the grain tank while some grain or material other than grain flows to the tailings return system for reprocessing. On S760, and S770 Combines, the tailings material is directed back into the threshing section of the separator for additional threshing. The tailings material on the S780 and S790 Combines are directed to the active tailings return system for additional threshing, and then directed back on the return pan and then onto the main chaffer for additional cleaning (6).
The concave inserts provide the additional threshing action required for harvesting small grain with the round-bar/multi-crop concave.
Feature benefits:
Round-bar/multi-crop concaves with inserts
Concave insert for round-bar concavesFunctionality:
The concave insert assembly consists of an over-center latching mechanism, left-hand support bracket, and the threshing insert. The over-center latch and support bracket bolt to the round-bar concave and remain in place, enabling quick installation and removal of the threshing insert as needed - no tools required. These concave inserts are recommended for use with the round-bar/multi-crop concave in small-grain crops. The attachment includes a set of two inserts for use in the front concave section only.
Additional threshing tine base weldments for installation into the DensePack locations of a variable-stream rotor can only be used to improve material handling in some tougher conditions such as rice and grass seed harvest. This may decrease machine performance if used in dry, brittle-crop conditions.
Feature benefit:
Variable-stream rotor equipped with DensePack
Grain wear plates
Rice wear plates
Wear plate kits (grain versus rice) must be ordered separately through Service Parts.
Rear of rotor with discharge paddlesRotor discharge flights are available for STS combines when operating in specialty crops. The discharge flights are recommended for use in crops such as sunflowers and edible beans when operating in conditions that require rotor threshing speeds below 300 rpm.
The discharge flights are designed to provide an aggressive push to the slow-moving crop material as it moves from the rotor housing into the discharge beater. The additional kick provided by the paddle design of the flighting significantly improves material flow and reduces possible plugging at the rear of the rotor at extremely low threshing speeds.
When operating in other crops where rotor speeds higher than 300 rpm are required (for example, soybeans, wheat, rice, etc.), it is recommended the discharge flights BE REMOVED to ensure adequate and even material flow through the rotor, as well as to provide better residue spread.
IMPORTANT: Discharge flight paddles are NOT recommended for use in heavy, damp wheat or rice crops.
The discharge flight is for use on any 9650 STS, 9750 STS, 9660 STS, 9760 STS, 9860 STS, 9670 STS, 9770 STS, and 9870 STS Combines and does not require the combine to be fitted with any particular configuration of rotor discharge housings.
NOTE: Two rotor discharge flight paddles for 9560 STS, 9570 STS, and S550 STS Combines, AH219961 and AH219962, can be ordered through Service Parts.
Concave cover plates for round-bar concaves onlyConcave sectionalized cover plates for round-bar concaves help to increase performance in the threshing area in tough conditions and can improve material distribution from the concaves to the cleaning system.
Concave cover plates for round-bar concaves onlyConcave sectionalized cover plates for round-bar concaves help to increase performance in the threshing area in tough conditions and can improve material distribution from the concaves to the cleaning system.
The rotary screen brush kit adds a series of brushes to the rotary screen. The brushes prevent debris from building up on the screen, allowing full air flow to the engine for cooling.
Smooth-wear strips on feed acceleratorThe smooth-wear strips provide optimum grain quality in speciality crops such as popcorn and food corn. The bundle includes set of 30 wear strips to replace standard-equipment serrated wear strips.
Two-speed feed accelerator handle The slow-speed drive reduces the standard two-speed feed accelerator from 450 rpm/800 rpm to 320 rpm/770 rpm.
These lower speeds allow the feed accelerator to provide more gentle grain handling in delicate specialty crops such as edible beans, food corn, or popcorn.
Having the slow-speed feed accelerator drive available as a factory-installed option allows those who plan on using this drive for harvesting all their crops to save the cost of discarding the standard feed accelerator drive parts in the field.
Contoured serrated wear strips
Regular straight serrated wear stripsThe serrated feed accelerator wings have a smooth contoured back to provide fast yet gentle crop handling while also featuring serrated edges for positive crop movement in viney crops such as edible beans.
The updated feed accelerator wings are recommended in place of the optional smooth accelerator wear strips attachment because they help to provide excellent grain quality without compromising feeding performance in edible beans.
Grain tank level sensorThe fast, easy way to let the operator know the combine’s grain tank is full when harvesting on side hills.
Beacons activated
Functionality:
An additional grain tank level indicator is available to help detect a full grain tank.
The beacon lights are also activated when the combine is in road transport mode.
Active Terrain Adjustment is a system that enhances grain quality and reduces grain loss when harvesting on ascending or descending hills. The feature automatically adjusts the combine’s sieve and chaffer openings and carefully controls the cleaning fan speed, stabilizing tailings levels and ensuring a clean grain tank sample.
Feature benefit:
Achieves same loss level as on level land conditions (on hills up to 10 degrees)
Tailings reductions by up to 35 percent on 8-12-degree inclines
Automatic settings adjustments on hills
Active Terrain Adjustment slopeFunctionality:
Order Active Terrain Adjustment as a factory-installed option or as an attachment for field installation on model year 2016 machines and newer (PIN 785000 -). The feature can be used in both coarse and small grains in all terrain, but will excel especially on hills.
Active Terrain Adjustment pitch sensor
Active Terrain Adjustment cleaning fan actuatorWhen the machine starts an uphill climb, Active Terrain Adjustment will slow the cleaning fan down and open the chaffer and sieve elements. As the machine descends a hill, the cleaning fan speed will increase and the chaffer and sieve elements will close to decrease grain loss and prevent shoe loading.
The large tool cabinet is available on model year 2019 and newer combines models.
Two tool cabinet decks
Tool cabinet storage space
Enhanced single-point latching systemJohn Deere’s single-point header latching system provides combine operators a fast and easy method for connecting all front-end equipment. One easy motion of the lever connects the electrical and hydraulic circuits along with header retaining pins.
The enhanced single-point latching system, starting in model year 2016, will include a valve assembly mounted to all platform and corn head back sheets. These assemblies will include an orifice valve unique to the header type as well as a pressure override valve. Together, these ensure optimum performance and reliability of header hydraulic functions.
Compatibility for prior headers or combines to model year 2016 equipment is provided by attachments specific to the header and combine being used. Refer to the chart below for compatibility information.
Six different attachments cover the compatibility between new and used combines and front-end equipment. The attachments are BXE10667, BXE10666, BXE10668, BXE10670, BXE10697, and BXE10669.
Enhanced single-point latching systemJohn Deere’s single-point header latching system provides combine operators a fast and easy method for connecting all front-end equipment. One easy motion of the lever connects the electrical and hydraulic circuits along with header retaining pins.
The enhanced single-point latching system, starting in model year 2016, will include a valve assembly mounted to all platform and corn head back sheets. These assemblies will include an orifice valve unique to the header type as well as a pressure override valve. Together, these ensure optimum performance and reliability of header hydraulic functions.
Compatibility for prior headers or combines to model year 2016 equipment is provided by attachments specific to the header and combine being used. Refer to the chart below for compatibility information.
Six different attachments cover the compatibility between new and used combines and front-end equipment. The attachments are BXE10667, BXE10666, BXE10668, BXE10670, BXE10697, and BXE10669.
ActiveYield delivers automatic yield calibrations to the operator without spending time manually performing yield calibrations.
Feature benefit:
Functionality:
ActiveYield eliminates time-consuming manual yield calibrations and replaces them with automated sensors that calibrate the machine by measuring the grain as the tank fills. This enables decisions to be made in real time without leaving the cab.
ActiveYield sensors in grain tankWhen the ActiveYield option is enabled and the Terrain Compensation Module (TCM) in the StarFire™ 3000 or StarFire 6000 Receiver has been calibrated, ActiveYield is ready to go to work. As grain is harvested and enters the tank, the three sensors within the grain tank collectively measure the grain as it piles over the cross auger covers. If all conditions are acceptable (header and separator on, grain is flowing, and machine level is within 4 degrees) load collection occurs from 900 through 3000 kg (2000 through 6600 lb).
Any pitch and roll of more than 4 degrees from center during load collection will cause the system to reject that load due to the grain pile shifting in the tank. A new calibration load starts once grain is below the sensors on the cross auger covers.
Stored calibration loads are replaced by new ones as the system continues to collect data. The system may be disabled at any time by accessing the moisture setup page and unchecking the ActiveYield box if manual yield calibration is desired.
ActiveYield calibration location
ActiveYield InformationActiveYield is available for model year 2016 through model year 2019 S760, S770, S780, and S790 Combines and requires the 4600 CommandCenter™ Display, GreenStar™ 3 2630 Display, or GreenStar 3 CommandCenter. Additionally, a StarFire 3000 or 6000 Receiver must be installed on the combine with the TCM calibrated for ActiveYield to detect machine pitch correctly. Manual yield calibration is not required as each crop has a built-in default value.
Harvest Doc™ system yield data collected by an ActiveYield system is only compatible with the John Deere Operations Center. John Deere does not guarantee compatibility of ActiveYield collected documentation with John Deere APEX™ software or third-party software systems.
S690 Combine with manual grain tank extensionsS680 and S690 Combines are equipped with manual-folding grain tank extensions and fewer covers in base equipment. Power-folding grain tank extensions/covers with a folding grain tank loading auger is available as optional equipment. The 400-bu manual-fold grain tank extension attachment allows for the conversion of power-folding covers to manual grain tank extensions.
Axle spacers enable specific tire spacing for S-Series Combines. Reference the attached Ag Sales Manual S-Series tire spacing chart for specific tire, tire spacing, and recommended axle spacer information. The axle spacer attachments include axle spacers, attaching hardware, truss rods, couplers, and shaft extensions. Ladder extensions are typically required and ordered separately to provide the necessary clearance between the tires and ladder.
Please reference the following documents for more detailed information.
S-Series tire compatibility and spacing chart
Axle spacer chart
Enhanced single-point latching systemJohn Deere’s single-point header latching system provides combine operators a fast and easy method for connecting all front-end equipment. One easy motion of the lever connects the electrical and hydraulic circuits along with header retaining pins.
The enhanced single-point latching system, starting in model year 2016, will include a valve assembly mounted to all platform and corn head back sheets. These assemblies will include an orifice valve unique to the header type as well as a pressure override valve. Together, these ensure optimum performance and reliability of header hydraulic functions.
Compatibility for prior headers or combines to model year 2016 equipment is provided by attachments specific to the header and combine being used. Refer to the chart below for compatibility information.
Six different attachments cover the compatibility between new and used combines and front-end equipment. The attachments are BXE10667, BXE10666, BXE10668, BXE10670, BXE10697, and BXE10669.
Axle spacers enable specific tire spacing for S-Series Combines. Reference the attached Ag Sales Manual S-Series tire spacing chart for specific tire, tire spacing, and recommended axle spacer information. The axle spacer attachments include axle spacers, attaching hardware, truss rods, couplers, and shaft extensions. Ladder extensions are typically required and ordered separately to provide the necessary clearance between the tires and ladder.
Please reference the following documents for more detailed information.
S-Series tire compatibility and spacing chart
Axle spacer chart
Axle spacers enable specific tire spacing for S-Series Combines. Reference the attached Ag Sales Manual S-Series tire spacing chart for specific tire, tire spacing, and recommended axle spacer information. The axle spacer attachments include axle spacers, attaching hardware, truss rods, couplers, and shaft extensions. Ladder extensions are typically required and ordered separately to provide the necessary clearance between the tires and ladder.
Please reference the following documents for more detailed information.
S-Series tire compatibility and spacing chart
Axle spacer chart
Axle spacers enable specific tire spacing for S-Series Combines. Reference the attached Ag Sales Manual S-Series tire spacing chart for specific tire, tire spacing, and recommended axle spacer information. The axle spacer attachments include axle spacers, attaching hardware, truss rods, couplers, and shaft extensions. Ladder extensions are typically required and ordered separately to provide the necessary clearance between the tires and ladder.
Please reference the following documents for more detailed information.
S-Series tire compatibility and spacing chart
Axle spacer chart
S700 rear-wheel assist motor
Continue harvesting, even in muddy conditionsFeature benefit:
Functionality:
Specifications of the 2294-cc (140-cu in.) 4WD system include:
On all ProDrive™ transmission machines, low-speed 4WD engagement is limited to 10 km/h (6.2 mph) and high-speed 4WD engagement is limited to 15.9 km/h (9.9 mph) with maximum speed up to 20 km/h (12.4 mph).
Axle spacers enable specific tire spacing for S-Series Combines. Reference the attached Ag Sales Manual S-Series tire spacing chart for specific tire, tire spacing, and recommended axle spacer information. The axle spacer attachments include axle spacers, attaching hardware, truss rods, couplers, and shaft extensions. Ladder extensions are typically required and ordered separately to provide the necessary clearance between the tires and ladder.
Please reference the following documents for more detailed information.
S-Series tire compatibility and spacing chart
Axle spacer chart
Axle spacers enable specific tire spacing for S-Series Combines. Reference the attached Ag Sales Manual S-Series tire spacing chart for specific tire, tire spacing, and recommended axle spacer information. The axle spacer attachments include axle spacers, attaching hardware, truss rods, couplers, and shaft extensions. Ladder extensions are typically required and ordered separately to provide the necessary clearance between the tires and ladder.
Please reference the following documents for more detailed information.
S-Series tire compatibility and spacing chart
Axle spacer chart
Axle spacers enable specific tire spacing for S-Series Combines. Reference the attached Ag Sales Manual S-Series tire spacing chart for specific tire, tire spacing, and recommended axle spacer information. The axle spacer attachments include axle spacers, attaching hardware, truss rods, couplers, and shaft extensions. Ladder extensions are typically required and ordered separately to provide the necessary clearance between the tires and ladder.
Please reference the following documents for more detailed information.
S-Series tire compatibility and spacing chart
Axle spacer chart
Manual vane tailboard
Manual vane tailboard mountedThe manually adjustable vane tailboard design provides a residue spread pattern for platform cut widths up to and including 9.14 m (30 ft).
The manually adjustable vane tailboard allows simple vane angle adjustments from the ground. Manually adjust the vane position, as required, to meet the desired spread width.
Hydraulics and electrics for spreadersThe twin-disc straw spreader system uses two large impellers to ensure uniform distribution of material from the separator and cleaning system. The spreader is recommended for use when tillage practices do not dictate fine sizing of crop residue.
Straw spreader options:
1. Standard straw spreader
2. Widespread straw spreader (not available on the S650)
Hydraulics and electrics for spreadersThe twin-disc straw spreader system uses two large impellers to ensure uniform distribution of material from the separator and cleaning system. The spreader is recommended for use when tillage practices do not dictate fine sizing of crop residue.
Straw spreader options:
1. Standard straw spreader
2. Widespread straw spreader (not available on the S650)
