Steel rotor bearings for increased bearing life
Rotor bearings
The rotor bearings are now made of steel and have a three-lip seal to keep the dirt out and increase the life of the bearings.
The side and center bearings now have guards in order to avoid leaks and dust, increasing the life of the bearings.
Drawn tractor hookup

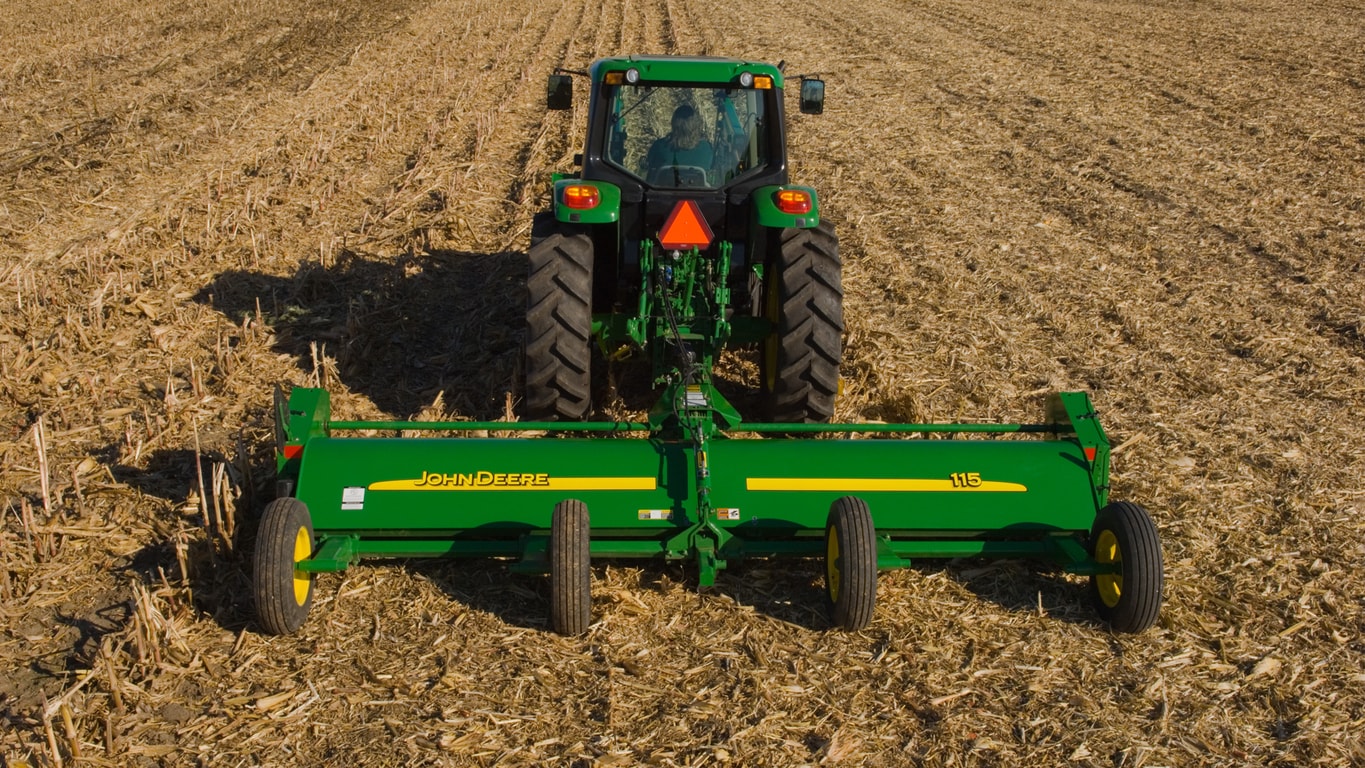

The 100 Series Flail Shredder is available with a drawn tractor hookup.
Heavy-duty John Deere-designed gearbox
Gearbox
A heavy-duty gearbox transfers power to the power-band drive belts through cross shafts with intermediate bearing supports:
- Gearbox has a constant-duty rating of 150 hp and a maximum rating of 225 hp.
Rubber deflectors will not dent or rust
Rubber deflectors
Front rubber deflectors keep debris and other materials under the shredder and away from the tractor and operator. Because they are made out of rubber, they will not dent or rust.
Rubber deflectors will not dent or rust
Rubber deflectors
Front rubber deflectors keep debris and other materials under the shredder and away from the tractor and operator. Because they are made out of rubber, they will not dent or rust.
Heavy-duty John Deere-designed gearbox
Gearbox
A heavy-duty gearbox transfers power to the power-band drive belts through cross shafts with intermediate bearing supports:
- Gearbox has a constant-duty rating of 150 hp and a maximum rating of 225 hp.
|
Power requirements
|
| Tractor PTO hp range |
67-149 kW
90-200 hp |
| Tractor RPM |
1,000 rpm |
|
Knives
|
| Number of knives |
120 |
| Knife dimensions |
7.87 x 63.5 x 143 mm
0.31 x 2.5 x 5.63 in. |
| Type |
Heat-treated side slice |
| Tip speed |
171 km/h
106 mph |
|
Rotor
|
| Rotor speed |
1,500 rpm |
| Rotor diameter |
139.7 mm
5.5 in. |
| Rotor bearing |
Sealed, self-aligning, piloted housing, auxiliary |
| Bearing size |
41.28 mm
1.625 in. |
|
Drivetrain
|
| Belts |
Power band, triple 5VX |
|
Mainframe
|
| Hitch |
Drawn |
| Hood thickness |
6.35 mm
0.25 in. |
| Safety deflector |
Yes |
| Gauge wheels |
4 infinitely adjustable |
|
Cutting capacity
|
| Cutting width |
4.6 m
15 ft |
| Cutting height |
7.6 to 25.4 cm
3 to 10 in. |
|
Dimensions
|
| Transport width |
2.39 m
7.83 ft |
| Transport length |
5.82 m
19.08 ft |
| Weight |
1,497 kg
3,300 lb |
|
Optional equipment
|
| Constant velocity joint driveline |
Yes |
Accessories and Attachments
Deflectors - Rubber - BP18083
Deflectors - Steel Sheet - BP16676
Steel deflectors
Rubber deflectorsDeflectors can be used on the front of the shredder to prevent cut material from being thrown forward. Rubber deflectors are recommended when shredding in rocky areas.
Driveline with Overrunning Clutch and Constant Velocity Joint, 1-3/4 In. Drive - AP40461
Driveline with Overrunning Clutch and Constant Velocity Joint, 1-3/8 In. Drive - AP40459
Driveline with Overrunning Clutch, 1-3/4 In. Drive - AP40460
Gauge Wheel Support - BP17320
Additional gauge wheelAdditional gauge wheels can be ordered, if needed, for improved cutting performance.
Hydraulic Cylinder (3X8) with Hoses - BP16519
Lateral Skid Plate - AP40006
