Sealed gang bearings for extended life
The Frontier© DH Series Disk Harrows have self-aligning, sealed bearings to keep dirt out for dependable, maintenance-free performance and longer life.
Easily adjustable for varying soil conditions
Disk gangs are easily adjustable to match changing soil conditions.
Use a more aggressive angle to tear up and penetrate rough and uneven soil.
Reduce the angle for a smoother finish for final seedbed preparation.
iMatch compatible attaching parts
The iMatch system converts the tractor's 3-point hitch to fixed hooks and makes attaching implements a super-quick connection.
NOTES:

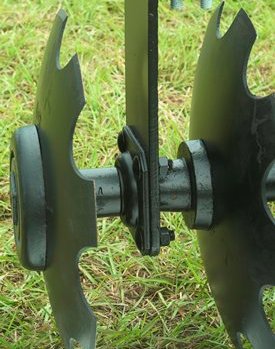

Notched blades cut through the toughest soils
Notched blades with cast spools come standard with the Frontier© DH10 Series. These notched blades aggressively cut and mulch soil.
| Warranty | |
| W | w |
| Weight | |
| Operating | 176 kg 388 lb |
| Shipping | 205 kg 452 lb |
| Gang axle | |
| Type | Square |
| Hitch | |
| Category | Cat. 1 |
| Blade | |
| Spacing | Front 19.1 cm 7.5 in. Rear 19.1 cm 7.5 in. |
| Bearing hanger | |
| Size | 9.5 mm 0.375 in. |
| Blade | |
| Thickness | 3 mm 0.1181 in. |
| Quantity | 12 |
| Gang axle | |
| Diameter | 25.4 mm 1 in. |
| Bearing hanger | |
| Material | Formed steel plate |
| Gang angles | |
| Front | 2, 6, 12, 18 degree (angle) |
| Rear | 10, 14, 18, 23 degree (angle) |
| Tubing | |
| Frame | 50.8x50.8x3 mm 2x2x0.1196 in. 50.8x50.8x4.8 mm 2x2x0.1875 in. |
| Gang | 50.8x50.8x4.8 mm 2x2x0.1875 in. |
| Bearing hanger | |
| U-bolt size | 12.7 mm 0.5 in. |
| Bearing type | Self-aligning sealed ball bearing in pre-rivited flange |
| Set-up time | |
