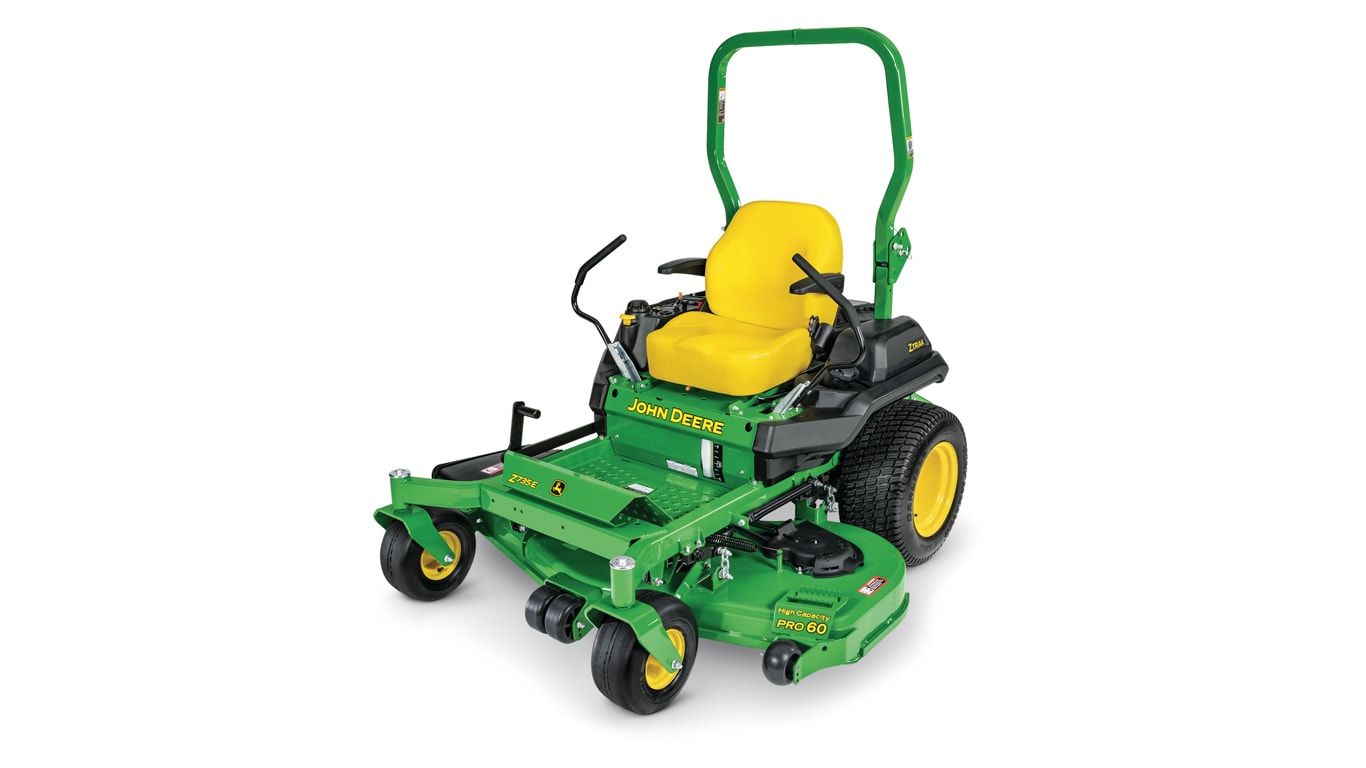

John Deere Z735E

Control panel

Control panel, Z720E, Z735E

The operator control panel is conveniently located to the right of the operator. The following controls are found on the right-hand console:

• Key switch
• Hour meter
• Ignition switch
• Power take-off (PTO) control
• Engine speed control
• Engine choke control
• Mower cut-height dial
• Mower transport position lock
• Space for the optional light kit switch

Adjustable steering levers

Steering levers in operating position

Steering levers in park position

Motion control levers are shaped and located for operator comfort and ease of control.

18-position control lever adjustment, low

18-position control lever adjustment, high

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:

• Combined height and fore/aft positions gives 18 adjustments
• Increased operator comfort with more leg room and more hand positions
• Adjustable for most precise control of the machine

Tracking adjustment

Convenient tracking adjustment locations

Tracking adjustment bolt

On-board tracking adjustment can be made by the operator from the operator seat.

• A 13-mm socket wrench is required.

Parking brake integrated with motion-control levers for extra convenience

Parking brake in disengaged operating position

Parking brake in engaged outward position

A patent-pending automatic parking brake system is designed into the steering control levers:

• The mechanical parking brake is operated by the steering control levers.
• The parking brake is engaged when the steering control levers are moved outward, and it is disengaged when the steering control levers are moved inward to the operating position.
• An audible click lets the operator know the brake has fully engaged or disengaged.

The internal parking brake rotor and puck are continually lubricated and cooled for dependable operation and long life.

Mower deck lift/cut-height adjustment

Mower deck lift pedal

Mower lift-assist spring

Mower deck cutting height adjusts from 1.5 in. (3.8 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:

• The foot-lift pedal is used to raise the mower deck for setting cut height or locking in the raised or transport position.
• A lift-assist spring is provided to optimize the effort it takes to raise the mower deck.

Safety interlock system

Interlock switch is located under the seat

Operator presence system seat switch

Safety interlocks help prevent operating in an unsafe way:

• The parking brake must be engaged for the engine to crank.
  • Parking brake is set when motion-control levers are in the outward position.
• The operator presence system requires the operator to be in the seat to operate the PTO.
• The key switch interlock prevents bypass starting.
• If the operator leaves the seat when the PTO is engaged, controls are in the operating position, or the parking brake is not set, the engine will shut down.
• The seat interlock switch disengages the mower when the operator leaves the seat.
• The engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the parking brake set.

Mower deck cut-height adjustment dial

Mower deck transport lock

• To adjust cut height, simply push down on the foot-lift pedal, adjust the dial, and release the foot-lift pedal to lower the deck to the chosen height.
• Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.
• To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever and release the foot-lift pedal to lower the deck to the chosen height.

4-year bumper-to-bumper warranty*

Exclusive, 4-year, single-source, bumper-to-bumper warranty is included for all John Deere Z700 Series ZTrak mowers. The warranty places John Deere at the forefront of the mowing industry. It is hassle free, with one company handling all the paperwork.



Z720E, Z735E	4-year, 500-hour warranty
Z730M, Z735M	4-year, 750-hour warranty
Z740R, Z760R	4-year, 1000-hour warranty

Service interval decal

Daily service decal

A convenient service decal gives basic maintenance information. It provides a quick reference for keeping recommended service up to date. It is located underneath the battery cover.

Quick response (QR) codes link to owner information web pages

QR code label

To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located under the right steering lever. The owner information web pages that include links to:

• Safety and how-to videos
• Operator’s manuals
• Parts catalogs
• Maintenance reminder sheets
• Attachments
• Warranty statements

Flip-up foot platform for mower deck access

Operator foot platform

Easy-to-remove foot platform (Z720E shown)

The professional-style steel foot platform is easy to remove without tools:

• Makes cleaning grass off the top of the mower deck easier
• Provides convenient access to the mower deck for service

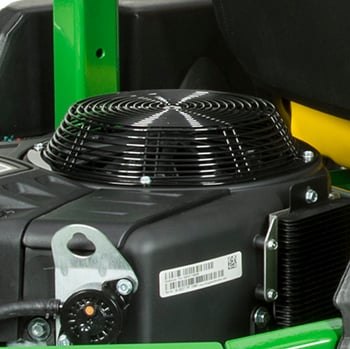

Engine service

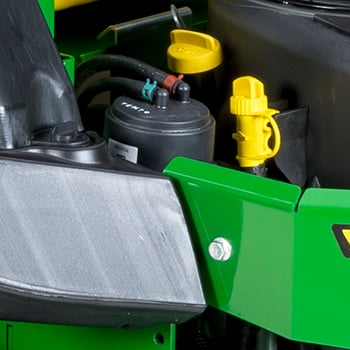

Engine oil check/fill and drain tube (Z720E, Z730M, Z740R, Z760R)

Engine oil check/fill and drain tube (Z735E, Z735M)

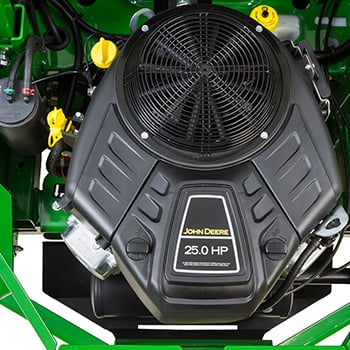

The engines are easy to service, including changing the oil and the oil filter and servicing the air filter:

• The engine oil check/fill tube is located at the top of the engine and easy to see and reach.
• No-tools oil drain is convenient to use.
• A flexible oil drain tube is included to conveniently drain oil into a pan, thus eliminating oil spills.

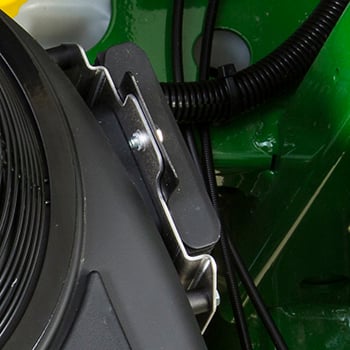

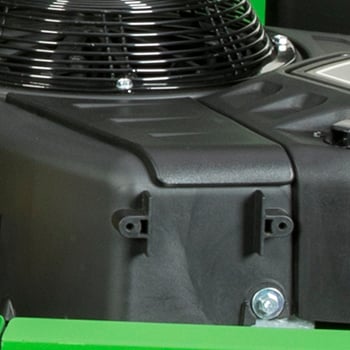

Engine air filter panel (Z735E engine shown)

Air filter cover removed (Z735E shown)

Multi-stage canister air filter system (Z740R shown)

Air filter element (Z740R shown)

Engine air filters are at the top of the engine for easy service:

• Z720E, Z735E, Z730M, and Z735M engines have knobs to remove the filer cover.
• The Z740R and Z760R have a heavy-duty, multi-stage canister air filter system, which uses a round primary and secondary filter that are easily accessed with latches on the end cap.

Grease fittings

Top of the mower deck

Only three grease fittings require service:

• Three to lubricate the mower-blade spindles, two easily accessed from the spindle covers, and the third by removing the foot platform.

Battery accessibility

Battery cover

340 CCA battery

The battery is protected from debris, dust, and moisture:

• It is easy to access under the panel on the left-hand side of the machine.
  • Held in place by an easy-to-remove thumbscrew
• Powerful 340 cold cranking amp (CCA) battery provides dependable starts.

Mower deck serviceability

Floating deck mounting system

Deck-level adjustment

A patent-pending deck-leveling system provides easy adjustment at all four mower mounting points:

• Loosen the nut (B) slightly with a 15-mm wrench.
• Using the open end of a 16-mm wrench on the hex fastener (A), raise or lower the deck as needed so the height of the rear blade tip is 3 to 6 mm (1/8 to 1/4 in.) higher than the front blade tip.
  • Tick marks on bracket (C) are provided to aid in observing movement.
• When the deck is at the height needed, tighten the nut (B).

Easy-to-clean flat-top mower deck

Flip-up spindle cover for easy cleanout and maintenance

Serviceability is designed into the mower deck:

• Easy access is provided by the removable operator foot platform.
• Flat-top design minimizes places for debris to collect.
• Spring-loaded, flip-up belt guards make removing debris easy.
• A provision is provided for a standard, 3/8-in. (9.5-mm) ratchet wrench to be used for releasing belt tension when removing the drive belt.

Transmission bypass (tow valves)

Tow-valve control, right (knob pictured in neutral position)

Tow-valve controls are provided for each transmission:

• Controls are located at the rear of the machine and are easy to access.
• Tow valves allow moving the machine in its neutral position when the engine is not running.
• Simply, loosen the knob, push towards the front of the machine, and tighten the knob back. When finished moving the machine, return the rods to the operating position.

Built-in tie-down locations

Built-in front tie-down location, right side

Built-in front tie-down location, left side

Built-in rear tie-down location, right side

Built-in rear tie-down location, left side

Four tie-down locations are provided for convenience and safety when trailering the machine.

Operator digital video disc (DVD)

An operation and safety DVD is provided with each machine. Please consult the operator’s manual for other safety and operating procedures.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

10P Poly Utility Cart

Every owner of a John Deere riding lawn and garden product is a potential customer for a high-quality, affordable utility cart.

Utility carts can be used to haul a variety of materials:

• Firewood
• Lawn debris
• Sand
• Dirt
• Mulch
• Garden tools
• Plants and bushes

The 10P Utility Cart is designed, painted, and decaled to be compatible with other John Deere equipment:

• Large 650-lb (295-kg) capacity
• 10-cu ft (283-L), heavy-duty, 0.25-in. (6.4-mm) thick poly bed
• Will not dent or rust
• 15x6 tubeless pneumatic tires with turf tread for maximum traction
• Easy, hands-free foot pedal dump release
• Steep dump angle for complete emptying

A convenient foot pedal dump release kit, LP48017, which now comes standard on all 10P and 17P carts is available to retrofit existing poly carts. This kit allows the operator to use both hands to lift the cart bed for more natural and efficient unloading.

Model comparison chart

Comparison with similar models

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:

Ordering information
Please contact a local John Deere dealer for availability and pricing information.

10P Poly Utility Cart
Order number: LPPCT10JD

Oilite is a trademark of Beemer Precision, Incorporated.

7P Poly Utility Cart

Every owner of a John riding lawn and garden product is a potential customer for a high-quality, affordable utility cart. Utility carts can be used to haul a variety of materials including firewood, lawn debris, sand, dirt, mulch, garden tools, plants, and bushes.

Utility carts are designed, painted, and decaled to be compatible with other John Deere equipment.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak™ or ZTrak™ mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck.

7P Poly Utility Cart

• The cart has a premium molded, high-density polyethylene box construction.
• Compression molding process allows polyethyl­ene to be the optimum thickness in all areas for superior strength and durability.
• Polyethylene body will not rust or dent; it stays looking new longer.
• 0.75-in. (2-cm) x 2-in. (5-cm) stake pockets are molded in to make the addition of side extensions easy.
• Two vertical 0.75-in. (2-cm) molded channels on each side allow easy use of dividers to separate the box into two or three compartments.
• Ribs in the box bottom add strength and prevent the shovel from hitting bolts when emptying the cart.
• Sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.
• Styling is compatible with other John Deere equipment.
• Pneumatic tires provide turf tread for good flotation, shock absorption, and minimal rolling resistance.

Wheels

7P Utility Cart wheel

Wheels are mounted on a solid, one-piece axle for durability.

Iron and Oilite® wheel bearings with grease fittings provide lubrication for long life.

The pneumatic tires offer the following:

• Good flotation
• Minimal rolling resistance
• Shock absorption

Sloped tailgate

Sloped tailgate for easy emptying

A sloped tailgate design makes emptying the box easier; there is no tailgate to loosen or remove.

Tractor hitch

Spring-pin tractor hitch

A large-diameter hitch pin provides plenty of strength:

• Fast, easy attachment to the tractor hitch
• Spring pin to ensure the pin stays in place

Tilt latch

Tilt latch

An easy-to-use, spring-loaded dump latch allows tilting the box for easier unloading. A steep dump angle makes emptying the cart easier.

Model comparison chart

Comparison with similar models

*The total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The maximum weight for the 21 Utility Cart is rated at 20 mph (32.2 km/h).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Specifications

*Total weight of the cart and payload. For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg).

**HDPE is compression molded for optimum thickness in all areas and maximum durability.

Tractor compatibility and requirements

Utility Carts

Chart below shows vehicle compatibility.

An X indicates cart can be used with the pulling unit.

NOTE: For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). The chart shows which utility carts are compatible with the vehicle.

For proper braking and operation, the loaded weight of the cart should never exceed the weight of the tractor, or other towing unit, plus the operator. The loaded weight of any equipment towed by an EZtrak or ZTrak mower should not exceed 250 lb (113.4 kg). See the appropriate vehicle pages for the weight of the vehicle and the mower deck. Additional weight can be added to the vehicle by the following methods:

Ordering information

Please contact a local John Deere dealer for availability and pricing information.

7P Poly Utility Cart
Order number: LP21935

Oilite is a trademark of Beemer Precision, Incorporated.

Attachment bar

Attachment bar

The attachment bar, required for MCS installation, bolts to the ZTrak mower frame to support the hopper.

NOTE: When installing on M and R Series machines, remove the rear hitch from the engine shroud and re-install the hitch onto the attachment bar/bumper.

Hopper and included weight bracket and weights

6.5-bu (229-L) hopper installed

Ballast bracket and weights are included with the hopper attachment.

Weight bracket and weights included

Front weights installed on a Z735M with a 54-in. (137-cm) Mower Deck

Four weights are included. For proper ballast with a complete material collection system, the number of weights required to be installed on the machine depends on the mower deck size as follows:

• 48-in. (122-cm) mower deck requires four weights
• 54-in. (137-cm) mower deck requires three weights
• 60-in. (152-cm) mower deck requires two weights

The appropriate Power Flow™ blower, chute, and attachment bar/bumper are sold separately and are required for installation of a complete material collection system.

6.5-bu (229-L) rear bagger (attachment bar/bumper, chute, and blower must be ordered separately)

The 6.5-bu (229-L) rear bagger efficiently collects material from the mower deck:

• A Power Flow blower (ordered separately) on the end of the mower deck moves material up the chute (ordered separately) and into the hopper.
• A weight bracket and four 18-lb (8.2-kg) weights are included for installation on the front of the vehicle to help counterbalance the weight of the hopper.

Removing bag from 6.5-bu (229-L) hopper

Removing bag from 6.5-bu (229-L) hopper

The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:

• Two durable bags give a generous 6.5-bu (229-L) capacity.
• The bags lift out for easy emptying.
• Efficient chute provides a smooth flow of material to reduce the chance of plugging.
  • The chute and Power Flow blower must be ordered separately.
• Standard mower blades are used for bagging.
• Air exhaust duct directs air from the hopper back and toward the ground for clean operation.
• Convenient latch makes opening and closing the hopper easy.

NOTE: Appropriate Power Flow blower, chute, and attachment bar are required (ordered separately).

Yard tool kit

The yard tool kit provides the ability to carry yard tools such as a rake and a shovel on the machine. The kit consists of an upper bracket and lower bracket and can be mounted on either the right or the left side of the rear engine shroud. A maximum of two yard tool kits are compatible with the machine.

• Mounts to side of rear engine shroud
• Not compatible with a material collection system (MCS).

Toolbox kit

The toolbox kit provides easy access and convenient storage for small, hand-held tools:

• Mounts to rollover protective structure (ROPS) above the engine
• Not compatible with a complete material collection system (MCS)
• Not compatible with the cargo basket

String trimmer mount on Z730M

Main bracket

Secondary bracket

The main bracket fits snugly over the right side fender and the secondary bracket mounts to the caster arm on the discharge side of the machine.  Rubber straps are provided to secure the trimmer in place. Not compatible with a complete material collection system.

LED light kit, lights off

LED light kit, lights on

The front light kit provides the ability to mow at twilight, increasing productivity hours. LED bulbs provide superior lighting. Mounting brackets are adjustable for aiming the light beam.

Includes instructions, two lights, and mounting hardware.

Compatible with all Z700 ZTrak™ Mowers.

Cargo basket

Designed to carry smaller hand tools and similar items (20 lb weight limit):

• Not compatible with a complete material collection system
• Not compatible with the toolbox kit

Traction mat on Z740R shown with optional foot pegs

The traction mat/floor mat is compatible with all Z700 Series ZTrak™ Mowers. It provides extra comfort and traction on the foot platform.

• Compatible with optional foot pegs.

Foot pegs in angled position

Foot pegs in horizontal position

Foot pegs are standard equipment on the ZTrak™ Z740R Mower and optional field installed kits on E and M Series. They provide the operator with more foot-placement options:

• Mounting holes are pre-drilled in the foot platform for installation.
• They can be adjusted into two different positions, horizontal and at an angle, providing more variability for foot placement during operation.
• The foot pegs also act as handles to remove and reposition the foot platform.

Trash receptacle kit

The trash receptacle kit enables trash pickup and storage without the need to leave the mower seat. It includes everything needed:

• A bracket for mounting for a 5-gal. (19-L) bucket and trash-grabbing apparatus
• A 5-gal. (19-L) bucket
• Trash-grabbing apparatus (may appear different than image pictured)

A mounting bracket keeps the bucket out of the way and is designed to be mounted opposite the trim side of the mower:

• Strong, long lasting, and will meet a variety of operator needs
• Saves time – tool and receptacle for collecting trash are located close to the operator
• No need for plastic trash bags hanging from the mower
• Accommodates debris that can cause damage to a mower

Sun canopy

Sun canopy

This kit is compatible with all Z700 Series ZTrak™ Mowers.

Not compatible with beacon light kit.

Ordering information

Please contact a local John Deere dealer for availability and pricing information.

Sun canopy
Order number: LPA11548

Jack kit and jack installed

Using jack mounting pin

The jack allows easy access to the underside of the mower for maintenance or blade changing while in the field. The kit contains everything necessary to install the jack onto the front of a mower.

Using jack mounting pin

Jack shown in storage position

Holes in the vehicle frame cross member are pre-drilled for ease of installation:

• The jack makes servicing the underside of the mower deck safer and easier.
• Placed in the storage position, the jack can be carried on the machine, available for use.
  • The jack will need to be removed when using front ballast that is required for a rear material collection system, so it is not compatible with a material collection system.

Beacon light installed on rollover protective structure (ROPS)

This light kit signals that the unit is approaching. The light is positioned near the top of the ROPS with a breakaway bracket; this ensures that, if struck, the light will not break but will move out of the way.

NOTE: Compatible with ZTrak™ Z700 E and M Series machines only.

AM115838 spark arrester shown

Available to meet the law in the state of California requiring its use under certain conditions.

The law basically requires that purchasers of certain products be given written notice that it is illegal to use such machines on forest-covered, brush-covered or grass-covered land (except on watered lawns) without a spark arrester.

For further information on this law, consult No. 442.5 of the California Public Resources Code.

Also available in other states if needed to comply with local ordinances or customer requests.

Spark arrester screen

Allows tractor to meet restrictions imposed by certain areas.
