John Deere 4045DF120

DEBUG Ind: Engine and Drivetrain, Cat: Industrial Engines, SubCat: Tier 2 Lesser Regulated, SubSubCat: Powertech 4 5l Df120
Back
Feature Overview

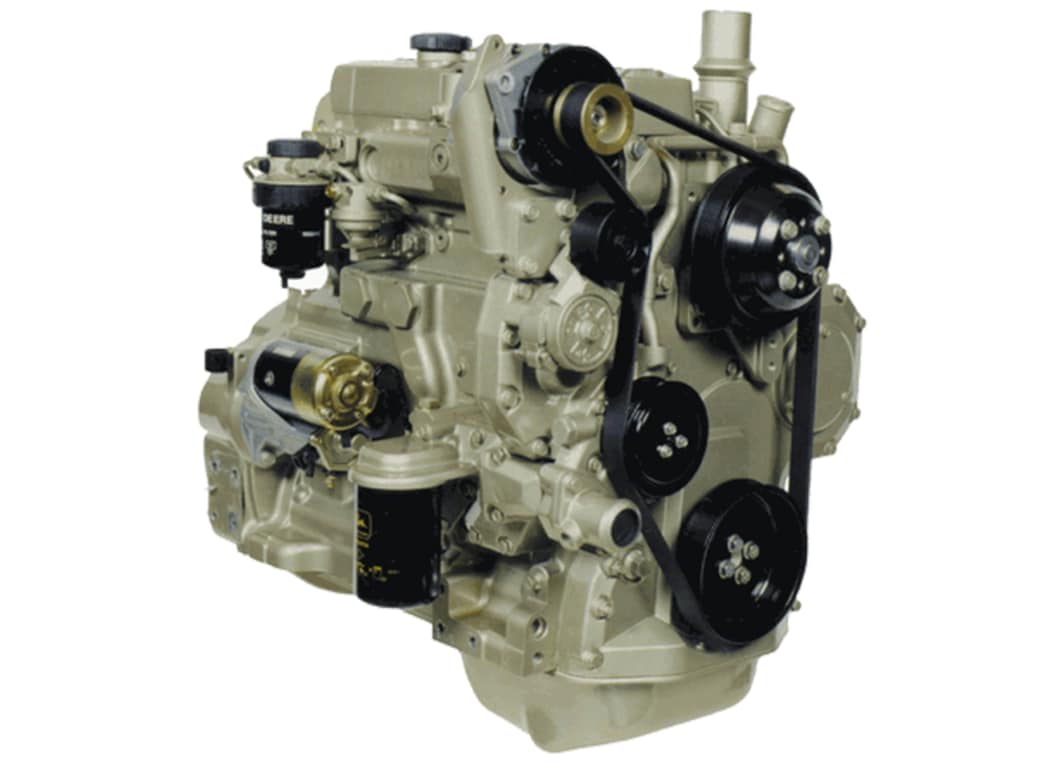

John Deere 4045DF120
  • PowerTech™
  • 63 kW (85 hp)
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 4045DF120
  • PowerTech™
  • 63 kW (85 hp)
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Have Questions?
Features

Dynamically balanced crankshaft

  • Crankshafts are formed from nodular iron
  • Unique 45-degree design permits use of larger crankshaft connecting-rod bearings for increased durability
  • Self-adjusting, eight-groove, poly-vee fan drive provides multiple fan drive ratios and fan heights that can be matched to specific application requirements
  • Poly-vee design provides more than twice the drive capacity of comparable vee-belts
  • Provides excellent heat dissipation
  • Precision machined for long life
  • Engine installation and maintenance simplified and convenient by providing dipstick and oil filter options on both sides of the engine
  • Standard gear auxiliary drive produces up to 50 hp (37 kW) for gear-driven accessories
  • Standard front and side mounting points provide easy installation and application flexibility
  • Provides smooth engine operation
Specs
Emissions certifications
N N
General engine data
Model 4045DF120
Number of cylinders 4
Displacement-- L (cu in) 4.5 (275)
Bore and Stroke-- mm (in) 106 x 127 (4.17 x 5.00)
Compression Ratio 17.6:1
Engine Type In-line, 4-Cycle
Aspiration Naturally aspirated
Length - mm (in) 860 (33.9)
Width-- mm (in) 612 (24.1)
Height-- mm (in) 846 (33.3)
Weight, dry - kg (lb) 387 (853)
Performance data range
Intermittent - Rated power/Rated speed 63 kW (84 hp) @2500 rpm
Intermittent - Peak power 63 kW (84 hp) @2500 rpm
Intermittent - Peak torque 306 N·m (226 ft-lb) @1300 rpm
Intermittent - Torque rise NA
Emissions Certifications
& &
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
