John Deere 6068TF150

DEBUG Ind: Engine and Drivetrain, Cat: Generator Drive Engines, SubCat: Eu Stage Ii Non Emissions, SubSubCat: Powertech M 6 8l Tf150
Back
Feature Overview

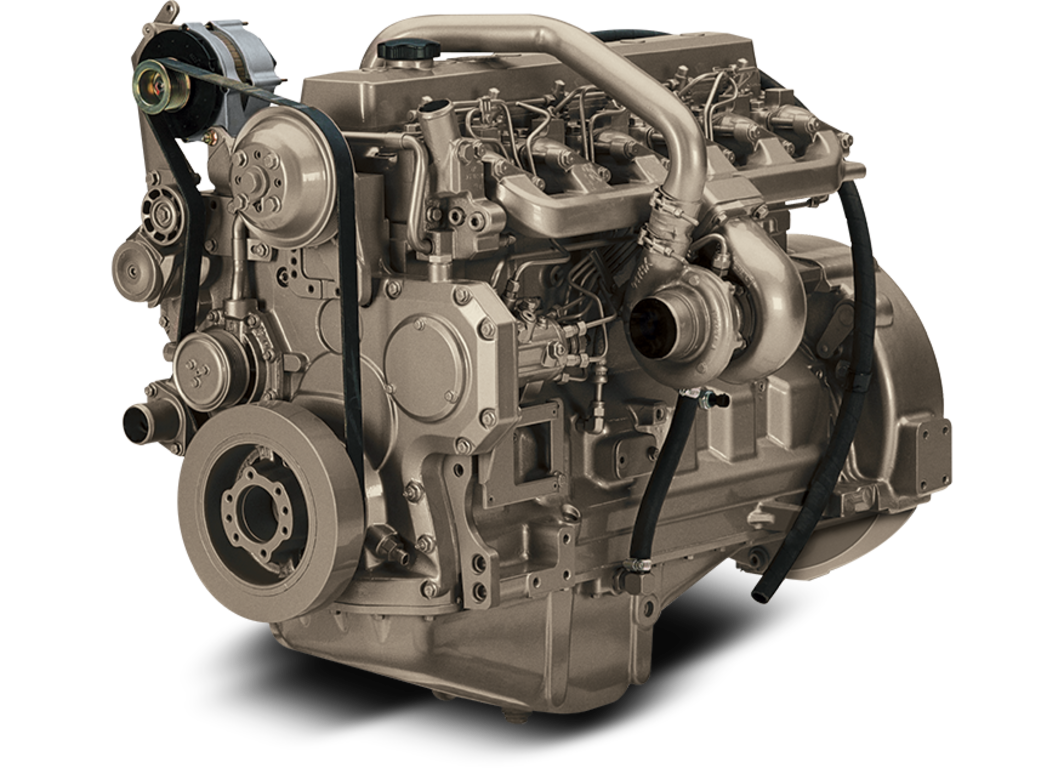

John Deere 6068TF150
  • PowerTech™ M
  • Standby: 94-112 kW (126-150 hp)
    @ 1500-1800 rpm
  • Prime: 85-101 kW (114-135 hp)
    @ 1500-1800 rpm
  • Dual frequency available
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Feature Overview
John Deere 6068TF150
  • PowerTech™ M
  • Standby: 94-112 kW (126-150 hp)
    @ 1500-1800 rpm
  • Prime: 85-101 kW (114-135 hp)
    @ 1500-1800 rpm
  • Dual frequency available
Get Financed
Request a Demo/Quote

*Inventory shortages may cause extended delivery dates

*This price does not include attachments and accesories

Value Your Trade
Have Questions?
Features

Dynamically balanced crankshaft

  • Induction-hardened journals for long hours of reliable service
  • Robust design to drive machinery from the front of the crankshaft
  • Supported by seven main bearings
  • 45-degree connecting rod/cap-joint design allows the use of large connecting rod bearings for increased durability
  • Provide excellent heat dissipation
  • Precision machined for long life
  • Rebuild to original specifications
  • Front and rear engine mounting pads on the side of the block facilitates installations
  • Auxiliary drive rated to 50 hp (37 kW) intermittent for powering ancillary equipment
  • Either-side service for filters and service points facilitates packaging
  • All connection points in common locations make it easy to install or package
  • High mount or low mount turbocharger position to meet packaging requirements
  • Excellent fuel economy and low oil consumption
  • Proven and Reliable Mechanical Governor
  • 3-5% Droop Governing
  • 12V or 24V Electric Shutoff
Specs
Emissions certifications
N N
General engine data
Model 6068TF150
Number of cylinders 6
Displacement-- L (cu in) 6.8 (415)
Bore and Stroke-- mm (in) 106 x 127 (4.17 x 5.00)
Compression Ratio 17.0:1
Engine Type In-line, 4-Cycle
Aspiration Turbocharged
Length - mm (in) 1117 (44.0)
Width-- mm (in) 598 (23.5)
Height-- mm (in) 984 (38.7)
Weight, dry - kg (lb) 533 (1175)
Performance data range
Hz (rpm) 60 ( 1800 )
Generator Efficiency % 88-92
Power Factor 0.8
Engine power - Prime kW 101-111
Engine power - Prime hp 135-149
Engine power - Standby kW 112-123
Engine power - Standby hp 150-165
Rated Fan Power - kW 5.6-6.3
Rated Fan Power - hp 7.5-8.4
Calculated generator set output - Prime kWe 84-96
Calculated generator set output - Prime kVA 105-120
Calculated generator set output - Standby kWe 93-107
Calculated generator set output - Standby kVA 116-134
Emissions Certifications
& &
Performance data range
Calculated generator set output - Prime kWe 84-96
Calculated generator set output - Prime kVA 105-120
Calculated generator set output - Standby kWe 93-107
Calculated generator set output - Standby kVA 116-134
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
