John Deere 324L

DEBUG Ind: Construction, Cat: Loaders, SubCat: Wheel Loaders, SubSubCat: Compact Wheel Loaders
Feature Overview
John Deere 324L
  • Net Power: 52 kW (71 hp) at 2,400 rpm
  • Operating Weight: 6400 kg (14,110 lb.)
  • Bucket Capacity: 0.8–1.6 m3 (1.0–2.1 cu. yd.)
Feature Overview
John Deere 324L
  • Net Power: 52 kW (71 hp) at 2,400 rpm
  • Operating Weight: 6400 kg (14,110 lb.)
  • Bucket Capacity: 0.8–1.6 m3 (1.0–2.1 cu. yd.)


An EPA Final Tier 4 (FT4)/EU Stage V emission-certified four-cylinder diesel engine helps this compact loader deliver power without compromise.

Articulation Plus© Steering System combines 30 degrees of articulation with an additional 10 degrees of rear-wheel steering.

New design improves the lifting path to near parallel ™ for better load-carrying capability than previous compact loader models.

With a standard speed of up to 23 mph, the 324L Compact Wheel Loader can make some pretty quick moves on and between jobsites.

The 324L Compact Wheel Loader’s optional High-Lift configuration is especially adept at loading feed mixers or stacking lighter materials even higher than before.

Equip your compact loader with an ISO coupler and go from a bucket attachment to fork attachment, for maximum lift capacity, quickly and easily. Opt for the John Deere quick-coupler to utilize a wide array of skid-steer-compatible attachments.

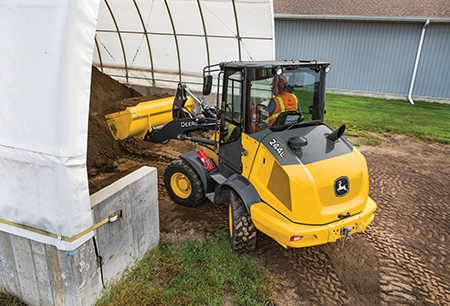

244L Articulating 244L Articulating

L-series compact wheel loaders feature industry exclusive Articulation Plus© that adds rear wheel steer to increase full turn tipping load and overall maneuverability

  • This steering system combines 30 degrees of articulation with an additional 10degrees of rear-wheel steering.
  • Articulation Plus enables a significantly higher full turn tipping load than machines without this feature because the machine does not need to articulate as much to turn as other loaders
  • This feature results in a significantly tighter turning radius than comparatively sized loaders without Articulation Plus©

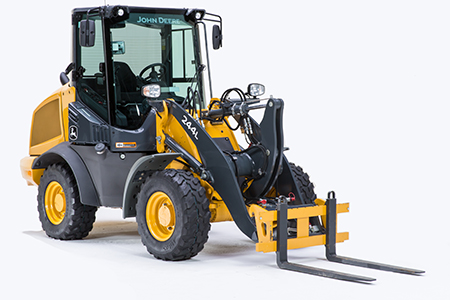

244L with forks 244L with forks

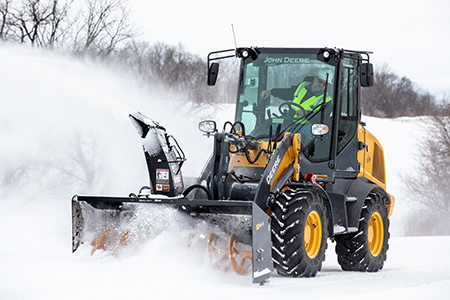

Loader with Snow Blower Loader with Snow Blower

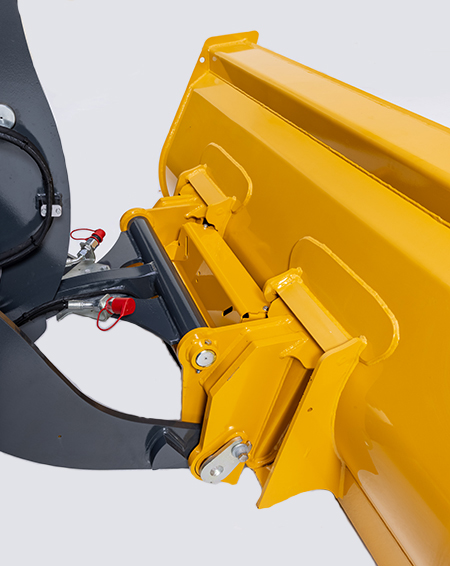

Skid Steer Style Quik-Tatch Coupler Skid Steer Style Quik-Tatch Coupler

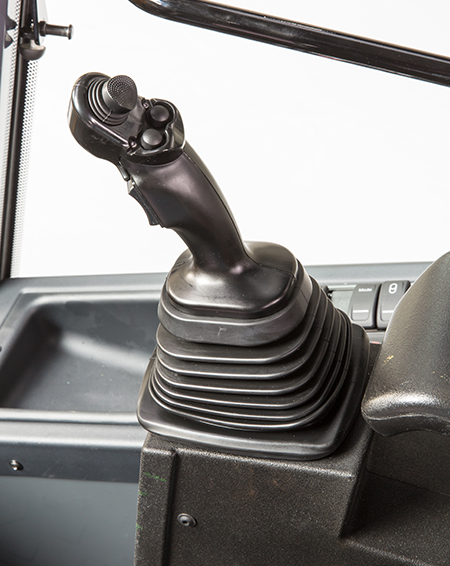

Joystick with 3rd function mini-joystick control Joystick with 3rd function mini-joystick control

With over 100 attachments offered in the John Deere attachment portfolio you can make the most out of your compact wheel loader by equipping it with many popular attachments.

  • Skid Steer Quik-Tatch coupler and ISO Style Couplers allow increased optionality to utilize a range of attachments and the common interface means previous series attachments will be able to be used on these new series of machines as well.
  • The Attachment Assist Package makes it easier for operators to get the most out of attachments by combining throttle lock and creep control to maintain full power at a set ground speed.
  • Optional three function hydraulics includes joystick with integrated FNR switch and 3rd function mini-joystick control for ease of operation.
  • Standard auxiliary hydraulics and optional High Flow hydraulics allows the use of attachments like snow blowers or augers.  By simply pressing a switch in the cab, operators can easily connect and disconnect attachments and enable them to have full function flow without having to manually press buttons throughout the day
  • Optimized forks for compact wheel loaders offer improved visibility, increased capacity, and better durability.  Designed specifically for compact loaders, they enable operators to load the far side of a trailer with ease
  • Optional 14 pin connector enables additional attachments to be compatible with the machines

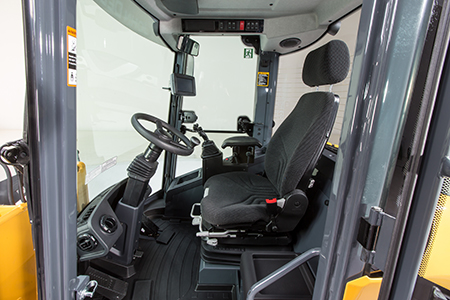

Hi-Back Seat and Adjustable Steering Column within Cab Hi-Back Seat and Adjustable Steering Column within Cab

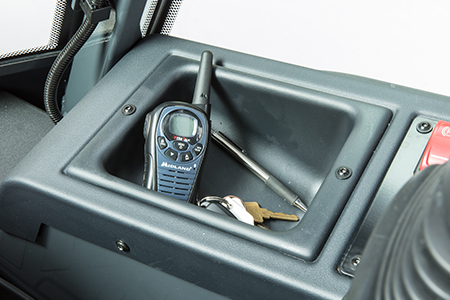

Storage area Storage area

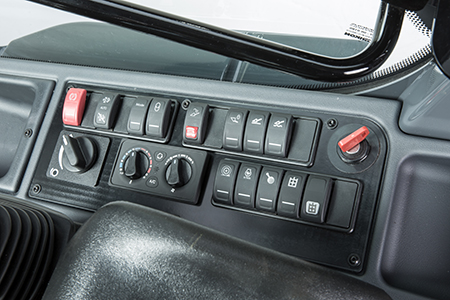

Right side console Right side console

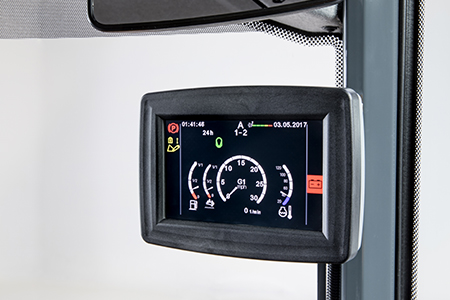

Display Display

The operator focused designs found within John Deere Compact Wheel loaders ensure operators are comfortable and productive all day.

  • L-series wheel loaders feature an overall larger cab that is both wider and longer compared to previous series
  • To help keep operators more comfortable during a long shift, an improved air conditioning system with additional adjustable louvers has been included. The optimized duct work and additional operator louvers provide increased airflow and allow the operator to direct airflow where it is needed.
  • Ergonomic, low effort controls all on the right side, allow operators to work comfortably and more efficient.
  • Machine display is redesigned and mounted to the cab A-frame and is height adjustable
  • Ample storage within the cab allows operators to keep personal items close and secure
  • Adjustable steering column in enclosed cab units allows operators to easily move the steering wheel to a desired position to help increase productivity and allow easy ingress and egress.
  • Optional premium high-back, air suspension heated seat provides top of the line comfort for operators in off road conditions and colder climates
  • The left pedal acts as a brake and inching pedal.  If the operator pushes all the way down, the machine comes to a complete stop.  If the operator presses the pedal without going all the way down, the machine will proportionally move slower and continue at that speed

Engine Manufacturer Yanmar
Engine Model 4TNV98CT
Emission Rating Tier 4
Displacement, ltr (Inches³) 3.3 (203)
Rated Speed, rpm 2400
Engine Output - Net, kW (hp) 52 (71)
Torque, Nm (lbf / ft) 280 (206)
Transmission Type Hydrostatic
Front Differential Type Locking
Rear Differential Type Open
Tire size - Standard 405 / 70 R18
Service Brake - Type Wet Disc & Drum
Service Brake - Location All Wheels
Service Brake - Actuation Hydraulic
Parking Brake - Type Wet Disc
Height - Over Cab, mm (ft/in) 2780 (9 ft 1 in)
Wheelbase, mm (ft/in) 2300 (7 ft 7 in)
Length - Including Bucket, mm (ft/in) 5650 (18 ft 6 in)
Ground clearance, mm (inches) 295 (12)
Width Over tires - Std, mm (ft/in) 2090 (6 ft 10 in)
Height - Pivot Pin, mm (ft/in) 3350 (11 ft )
Reach - At 2130mm 45° Dump, mm (ft/in) 1660 (5 ft 5 in)
Turning Circle - Maximum, mm (ft/in) 8550 (28 ft 1 in)
Fuel Tank, ltr (gallons (US)) 90 (23.8)
Hydraulic Tank, ltr (gallons (US)) 66 (17.4)
Axle - Front, ltr (gallons (US)) 7.4 (1.95)
Axle - Rear, ltr (gallons (US)) 6.8 (1.8)
Transmission, ltr (gallons (US)) 1.7 (0.45)
Heaped Capacity, m³ (yd³) 1.1 (1.4)
Bucket Capacity - Smallest, m³ (yd³) 1.1 (1.4)
Largest bucket capacity, m³ (yd³) 1.6 (2.1)
Breakout - Bucket , kgf (lbf) 5650 (12456)
Ride Control System Optional
System Voltage, V 12
Alternator Output, Amp 80
Pump Type Gear
Pump Flow - 1, lt/min (gallons (US) / min) 93 (25)
System Pressure, bar (PSI) 189.6 (2750)
*Manufacturer's suggested price. MSRP may be different in California. Taxes, freight, setup, and delivery not included. Optional accessories and attachments not included. Equipment, models and prices may vary by dealer. Product options and accessories may not be available in all regions. The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information. Offers valid in the United States. Prices in U.S. dollars.
